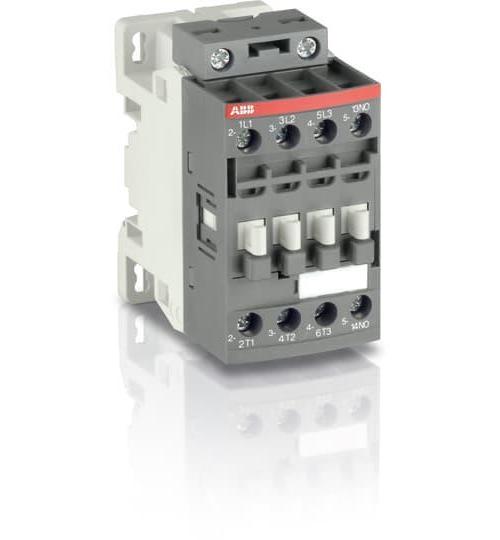

ABB AF09ZB-30-01-21 AC Operated Low Coil Consumption IEC Contactor With Standard Ferrule
Part Number # AF09ZB-30-01-21
SKU # 2432253
ABB AF09ZB-30-01-21 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF09ZB-30-01-21 |
| SKU #: | 2432253 |
| Coil Power Rating: | 4 kW, 5 hp, 7-1/2 hp |
| Coil Voltage: | 24 to 60 V AC, 20 to 60 V DC, 24 to 60 VAC, 20 to 60 VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 86 mm H x 45 mm W x 75 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -40 to 70 deg C |
| Terminal Type: | Screw |
| Type: | AC Operated Low Coil Consumption |
| Connection type: | Cable Clamp |
| Country of origin: | FR |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523123618 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB AF09ZB-30-01-21 AC Operated Low Coil Consumption IEC Contactor With Standard Ferrule
Brand: ABB
Part Number: AF09ZB-30-01-21
ABB IEC Contactor, AC Operated Low Coil Consumption, 24 to 60 VAC, 20 to 60 VDC Coil, 9 A Maximum Load Current, 4 kW, 5 hp, 7-1/2 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 1NC Auxiliary Contacts, Cable Clamp Connection, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 86 mm H x 45 mm W x 75 mm D Dimensions
Additional Description: ABB -AF09ZB-30-01-21 24-60V50/60HZ 20-60
Catalog Description: AF09ZB 3-pole contactors comply with the latest railway rolling stock standards and allow installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds. They are mainly used for controlling 3-phase motors and power circuits up to 690 V AC and 220 V DC. Improve the compactness of the installations thanks to reduced dimension and side-by-side mounting requiring less 15% width (without spacing) from -40 °C up to +70 °C. Meet all main rollling stocks standards: IEC 60947-4-1, IEC 60947-5-1, IEC 60077-1/-2 and applicable parts of EN 50155 standards, shocks and vibration withstand conforming to IEC 61373 cat. 1, class B. Reach the highest levels in fire and smoke behaviour with compliance to European standard EN 45545-2 (HL2, HL3 hazard levels) in group mounting. Reduce train energy with lighter devices and requiring 68% less coil energy consumption in operation. Electronic coil interface handling large DC voltage fluctuation voltage, including several
AF09ZB-30-01-21 Application
For controlling 3-phase motors and power circuits up to 690 VAC and 220 VDCAF09ZB-30-01-21 Item Features
- Designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
- Shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
- Fire and smoke safety compliance to European standard EN 45545 (H2, HL3 hazard levels)
- Electronic coil interface accepting sinusoidal AC 50/60 Hz control supplies included inside the wide control voltage range Uc minimum to Uc maximum of the contactor
- Maximum permitted control voltage must not be exceeded during voltage fluctuation defined according to IEC 60077 or EN 50155
- Built-in surge suppression and side by side mounting without restriction from -40 to 70 deg C
- 4 kW at 3-phase 400 V IEC, 5 hp at 440 to 480 VAC, 7-1/2 hp at 550 to 600 VAC
- 9 A at 550 to 600 VAC 3-phase UL/CSA
AF09ZB-30-01-21 Standards
IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 60947-4-1|CSA 22.2 60947-4-1|IEC 60077|EN 50155|IEC 61373|EN 45545SKU #2432253Part Number #AF09ZB-30-01-21UNSPSC39121529UPC03471523123618
Image provided may only be a representation of final product and may include optional equipment
