Part Number # AF09ZB-30-10RT-23
SKU # 2435968
AF09ZB-30-10RT-23
ABB AF09ZB-30-10RT-23
Part Number # AF09ZB-30-10RT-23
SKU # 2435968
ABB AF09ZB-30-10RT-23 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF09ZB-30-10RT-23 |
| SKU #: | 2435968 |
| Coil Power Rating: | 4 kW, 5 hp, 7-1/2 hp |
| Coil Voltage: | 100 to 250 V AC/DC, 100 to 250 VAC/VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 86 mm H x 45 mm W x 77 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -40 to 70 deg C |
| Terminal Type: | Screw |
| Type: | DC Operated Low Coil Consumption |
| Connection type: | Cable Clamp |
| Country of origin: | FR |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523127630 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB AF09ZB-30-10RT-23
Brand: ABB
Part Number: AF09ZB-30-10RT-23
ABB IEC Contactor, DC Operated Low Coil Consumption, 100 to 250 VAC/VDC Coil, 9 A Maximum Load Current, 4 kW, 5 hp, 7-1/2 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 1NO Auxiliary Contacts, Cable Clamp Connection, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 86 mm H x 45 mm W x 77 mm D Dimensions
Additional Description: ABB -AF09ZB-30-10RT-23 3P CONT AF09ZB 100-250V50/60HZ-D
Catalog Description: AF09ZB..RT 3-pole contactors comply with the latest railway rolling stock standards and allow installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds. They are mainly used for controlling 3-phase motors and power circuits up to 690 V AC and 220 V DC. Improve the compactness of the installations thanks to reduced dimension and side-by-side mounting requiring less 15% width (without spacing) from -40 °C up to +70 °C. Meet all main rollling stocks standards: IEC 60947-4-1, IEC 60947-5-1, IEC 60077-1/-2 and applicable parts of EN 50155 standards, shocks and vibration withstand conforming to IEC 61373 cat. 1, class B. Reach the highest levels in fire and smoke behaviour with compliance to European standard EN 45545-2 (HL2, HL3 hazard levels) in group mounting Reduce train energy with lighter devices and requiring 68% less coil energy consumption in operation. Electronic coil interface handling large DC voltage fluctuation voltage, including sever
AF09ZB-30-10RT-23 Application
For controlling3-phase motors and power circuits up to690VAC and220VDCAF09ZB-30-10RT-23 Item Features
- Designed in accordance to the applicable parts of IEC60077and EN50155standard
- Shocks and vibration withstand conforming to IEC61373(category1, class B)
- Fire and smoke safety compliance to European standard EN 45545 (HL2, HL3 hazard levels)
- Electronic coil interface accepting a wide DC control voltage range (0.85 Ucminimum to 1.1Ucmaximum according to IEC60947-4-1) including several Uc control voltages (0.7 to 1.25Uc according to IEC60077) used for battery supply
- Built-in surge suppression
- Side by side mounting without restriction from -40 to 70 deg C
- 4 kW at 3-phase 400 V IEC, 5 hp at 440 to 480 VAC, 7-1/2 hp at 550 to 600 VAC
- 9 A at 550 to 600 VAC 3-phase UL/CSA
AF09ZB-30-10RT-23 Standards
IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 60947-4-1|CSA 22.2 60947-4-1|IEC 60077|EN 50155|IEC 61373|EN 45545SKU #2435968Part Number #AF09ZB-30-10RT-23UNSPSC39121529UPC03471523127630

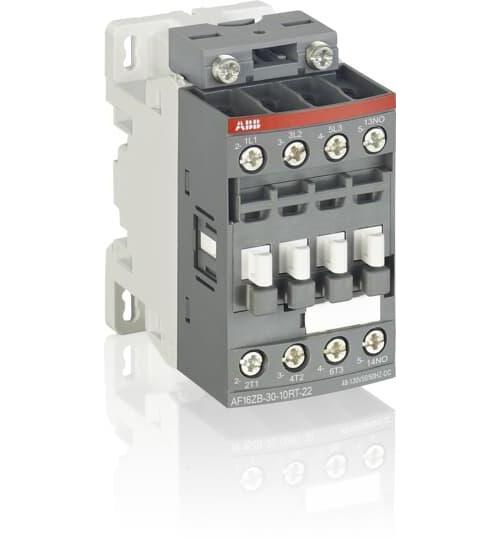

Image provided may only be a representation of final product and may include optional equipment
