Part Number # AF09ZB-40-00-21
SKU # 2424031
AF09ZB-40-00-21

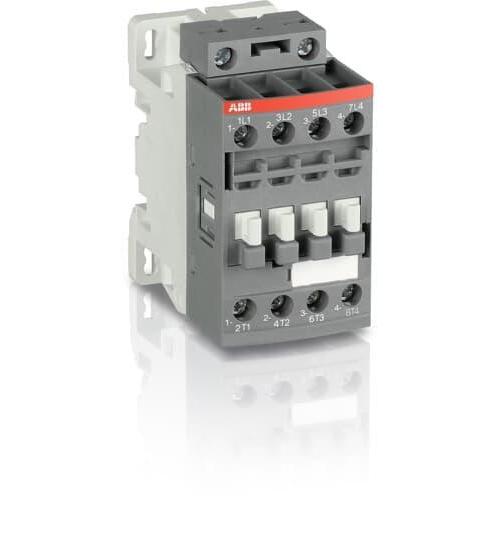

ABB AF09ZB-40-00-21 AC Operated Low Coil Consumption IEC Contactor With Standard Ferrule
Part Number # AF09ZB-40-00-21
SKU # 2424031
ABB AF09ZB-40-00-21 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF09ZB-40-00-21 |
| SKU #: | 2424031 |
| Coil Power Rating: | 2.2/4/5.5 kW |
| Coil Voltage: | 24 to 60 V AC, 20 to 60 V DC, 24 to 60 VAC, 20 to 60 VDC |
| Contact Configuration: | 4NO |
| Dimensions: | 86 mm H x 45 mm W x 77 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 4 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -40 to 70 deg C |
| Terminal Type: | Screw |
| Type: | AC Operated Low Coil Consumption |
| Connection type: | Cable Clamp |
| Country of origin: | FR |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523124417 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB AF09ZB-40-00-21 AC Operated Low Coil Consumption IEC Contactor With Standard Ferrule
Brand: ABB
Part Number: AF09ZB-40-00-21
ABB IEC Contactor, AC Operated Low Coil Consumption, 24 to 60 VAC, 20 to 60 VDC Coil, 25 A Maximum Load Current, 2.2/4/5.5 kW Coil, 4 Pole, 50/60 Hz Frequency, 4NO Contact Configuration, Cable Clamp Connection, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 86 mm H x 45 mm W x 77 mm D Dimensions
Additional Description: ABB -AF09ZB-40-00-21 4P CONTACTOR 24-60V50/
Catalog Description: AF09ZB 4-pole contactors comply with the latest railway rolling stock standards and allow installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds. They are mainly used for controlling non-inductive or slightly inductive loads and generally for controlling power circuits up to 690 V AC and 440 V DC. Improve the compactness of the installations thanks to reduced dimension and side-by-side mounting requiring less 15% width (without spacing) from -40 °C up to +70 °C. Meet all main rollling stocks standards: IEC 60947-4-1, IEC 60947-5-1, IEC 60077-1/-2 and applicable parts of EN 50155 standards, shocks and vibration withstand conforming to IEC 61373 cat. 1, class B. Reach the highest levels in fire and smoke behaviour with compliance to European standard EN 45545-2 (HL2, HL3 hazard levels) in group mounting. Reduce train energy with lighter devices and requiring 68% less coil energy consumption in operation. Electronic coil interface handling lar
AF09ZB-40-00-21 Application
For controlling non-inductive or slightly inductive loads and generally for controlling power circuits up to 690 VAC and 440 VDCAF09ZB-40-00-21 Item Features
- Designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
- Shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
- Fire and smoke safety compliance to European standard EN 45545 (HL2, HL3 hazard levels)
- Electronic coil interface accepting sinusoidal AC 50/60 Hz control supplies included inside the wide control voltage range Uc minimum to Uc maximum of the contactor
- Maximum permitted control voltage must not be exceeded during voltage fluctuation defined according to IEC 60077 or EN 50155
- Built-in surge suppression and side by side mounting without restriction from -40 to 70 deg C
- 2.2 kW at 220 to 230 to 240 V, 4 kW at 380 to 400/415/440 V, 5.5 kW at 500/690 V
- 25 A at 600 V UL/CSA, 1-phase 690 V IEC
AF09ZB-40-00-21 Standards
IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 508|CSA C22.2 File No. 14|IEC 60077|EN 50155|IEC 61373|EN 45545SKU #2424031Part Number #AF09ZB-40-00-21UNSPSC39121529UPC03471523124417
Image provided may only be a representation of final product and may include optional equipment
