Part Number # AF116-30-00-12
SKU # 2465163
AF116-30-00-12
ABB AF116-30-00-12
Part Number # AF116-30-00-12
SKU # 2465163
ABB AF116-30-00-12 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF116-30-00-12 |
| SKU #: | 2465163 |
| Coil Power Rating: | 55 kW, 75 hp, 100 hp |
| UNSPSC: | 39121529 |
| UPC: | 07320500476390 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB AF116-30-00-12
Brand: ABB
Part Number: AF116-30-00-12
ABB IEC Contactor, 3-Phase AC/DC Operated, 48 to 130 VAC/VDC Coil, 104 A Maximum Load Current, 55 kW, 75 hp, 100 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, Cable Clamp Connection, Screw Terminal, IP00/IP20 Enclosure, 5000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 150 mm H x 90 mm W x 126 mm D Dimensions
Additional Description: ABB -AF116-30-00-12 (N) CTR,3P,104A,48-130VAC/DC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 690 V. Operated with wide control voltage range 48-130 V, 50/60 Hz and DC
AF116-30-00-12 Application
For controlling 3-phase motors and power circuits up to 690 VAC and 260 VDC, motor starting, isolation, by-pass and distribution application up to maximum 690 VAF116-30-00-12 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- 55 kW at 3-phase 400 V IEC, 75 hp at 440 to 480 VAC, 100 hp at 550 to 600 VAC
- 104 A at 220 to 240 VAC 3-phase UL/CSA
AF116-30-00-12 Standards
IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 60947-1|UL 60947-4-1A|CSA 60947-1|CSA 60947-4-1ASKU #2465163Part Number #AF116-30-00-12UNSPSC39121529UPC07320500476390

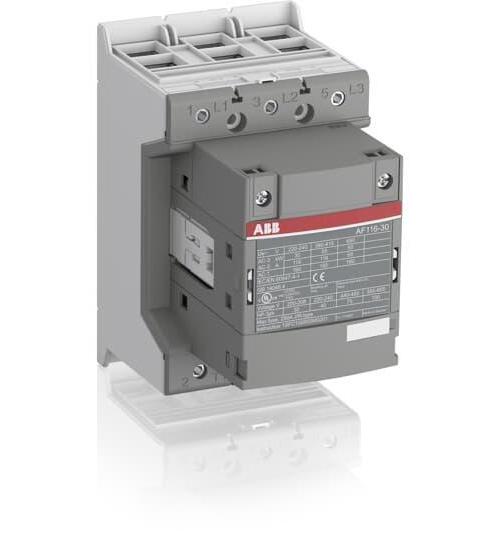

Image provided may only be a representation of final product and may include optional equipment
