Part Number # AF116-30-00B-11
SKU # 2453861
Image Disclaimers Message
AF116-30-00B-11

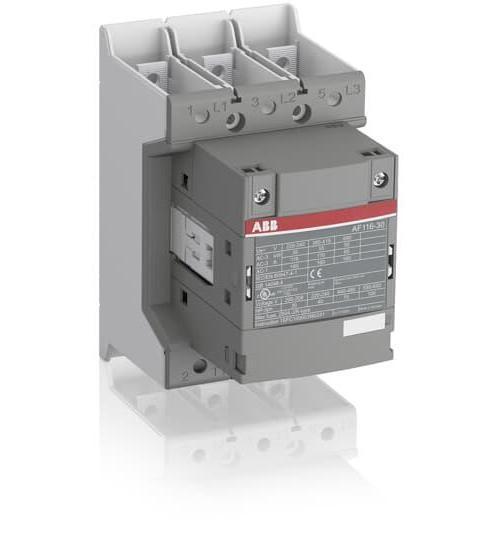

ABB AF116-30-00B-11
Part Number # AF116-30-00B-11
SKU # 2453861
$368.12 / Each
Typical price:$683.59 / Each
ABB AF116-30-00B-11 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF116-30-00B-11 |
| SKU #: | 2453861 |
| Coil Power Rating: | 55 kW, 75 hp, 100 hp |
| Coil Voltage: | 24 to 60 V AC, 20 to 60 V DC, 24 to 60 VAC, 20 to 60 VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 150 mm H x 90 mm W x 126 mm D |
| Enclosure Type: | IP00/IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 5000000 Cycles |
| Operating Temperature: | -40 to 70 deg C |
| Terminal Type: | Screw |
| Type: | 3-Phase AC/DC Operated |
| Connection type: | Bar |
| Country of origin: | SE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 07320500476499 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$368.12 / Each
Typical price:$683.59 / Each
Quantity:
- ABB IEC Contactor, 3-Phase AC/DC Operated, 24 to 60 V AC, 20 to 60 V DC Coil, 104 A Maximum Load Current, 55 kW, 75 hp, 100 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, Bar Connection, Screw Terminal, IP00/IP20 Enclosure, 5000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 150 mm H x 90 mm W x 126 mm D Dimensions
AF116-30-00B-11 Application
For controlling 3-phase motors and power circuits up to 690 VAC and 260 VDC, motor starting, isolation, by-pass and distribution application up to maximum 690 VAF116-30-00B-11 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- 55 kW at 3-phase 400 V IEC, 75 hp at 440 to 480 VAC, 100 hp at 550 to 600 VAC
- 104 A at 220 to 240 VAC 3-phase UL/CSA
AF116-30-00B-11 Standards
IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 60947-1|UL 60947-4-1A|CSA 60947-1|CSA 60947-4-1ASKU #2453861Part Number #AF116-30-00B-11UNSPSC39121529UPC07320500476499
