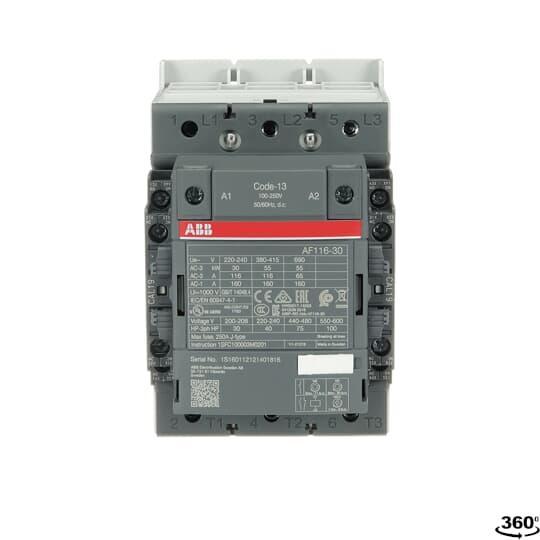

ABB AF116-30-22-13 Line Contactor
Part Number # AF116-30-22-13
SKU # 2366388
ABB AF116-30-22-13 Key Features
ABB AF116-30-22-13 Line Contactor
Brand: ABB
Part Number: AF116-30-22-13
ABB Line Contactor, Non-Reversing, Series: AF Series, 100 to 250 VAC/VDC Coil, 160 A Maximum Load Current, 30 hp, 40 hp, 75 hp, 100 hp Coil, 3 Pole, 30/55/75 kW Wattage, 3NO Contact Configuration, 2NO-2NC Auxiliary Contacts, 160 A at 690 V Contact, AF116 Size, Box Lug Terminal, IP00/IP20 Enclosure, 5000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 90 mm W x 126 mm D x 150 mm H Dimensions
Additional Description: ABB -AF116-30-22-13 CTR,3P,104A,100-250VAC/DC,2/2
Catalog Description: A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 690 V. Operated with wide control voltage range 100-250 V, 50/60 Hz and DC
AF116-30-22-13 Application
For applications such as motor starting, isolation, by-pass and distribution application up to max 690 VAF116-30-22-13 Item Features
- For connection with built-in cable clamps
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- 160 A at 690 V, 145 A at 690 V, 130 A at 690 V rated operational current AC-1
- 116 A at 220/230/240 V, 116 A at 380/400 V, 116 A at 415 V, 116 A at 440 V, 110 A at 500 V, 65 A at 690 V rated operational current AC-3
- 30 hp at 200 VAC 3 ph, 30 hp at 208 VAC 3 ph, 40 hp at 220 to 240 VAC 3 ph, 75 hp at 440 to 480 VAC 3 ph, 100 hp at 550 to 600 VAC 3 ph
- 30 kW at 220/230/240 V, 55 kW at 380/400 V, 55 kW at 415 V, 75 kW at 440 V, 75 kW at 500 V, 55 kW at 690 V
AF116-30-22-13 Standards
BAA Compliant|BV Certified|CB Certified|CCC Certified|DNV GL Certified|LR Certified|RMRS CertifiedSKU #2366388Part Number #AF116-30-22-13UNSPSC39121529UPC07320500476307
