Part Number # AF12-30-10-12
SKU # 2261767
Image Disclaimers Message
AF12-30-10-12

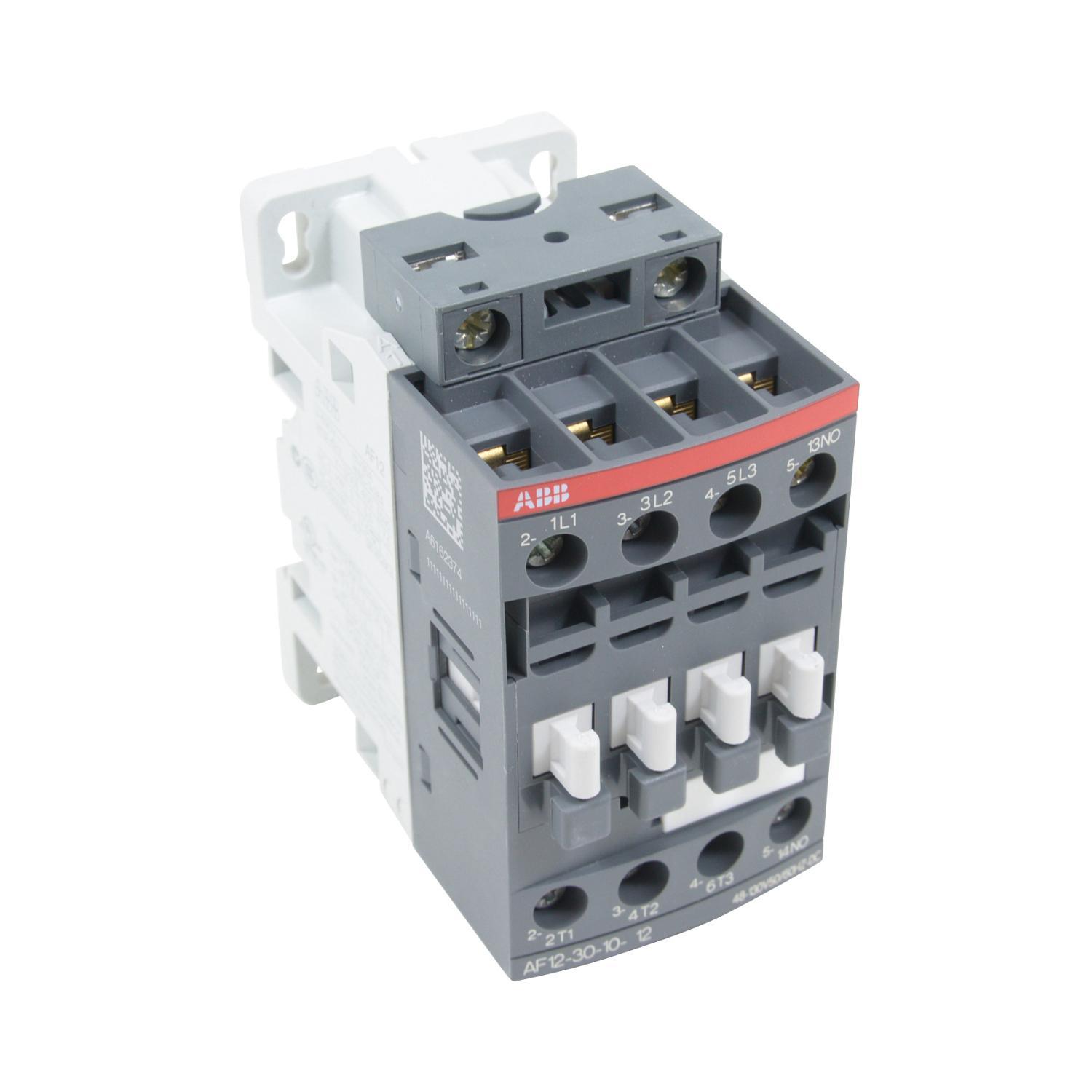

ABB AF12-30-10-12 Line Contactor
Part Number # AF12-30-10-12
SKU # 2261767
$84.46 / Each
Typical price:$156.85 / Each
ABB AF12-30-10-12 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF12-30-10-12 |
| SKU #: | 2261767 |
| Coil Power Rating: | 3 hp, 7-1/2 hp, 10 hp, 1 hp, 2 hp |
| Coil Voltage: | 48 to 130, 48 to 130 VAC/VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 28 A at 690 V |
| Dimensions: | 45 mm W x 77 mm D x 86 mm H |
| Enclosure Type: | IP20 |
| Number of Auxiliary Contacts: | 1NO |
| Number of Poles: | 3 |
| Operating Temperature: | -60 to 80, -60 to 80 deg C |
| Series: | AF Series |
| Size: | AF12 |
| Terminal Type: | Screw |
| Type: | Non-Reversing |
| Wattage: | 3/5.5/7.5, 3/5.5/7.5 kW |
| Country of origin: | FR |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523110328 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$84.46 / Each
Typical price:$156.85 / Each
Quantity:
- ABB Line Contactor, Non-Reversing, Series: AF Series, 48 to 130 VAC/VDC Coil, 28 A Maximum Load Current, 3 hp, 7-1/2 hp, 10 hp, 1 hp, 2 hp Coil, 3 Pole, 3/5.5/7.5 kW Wattage, 3NO Contact Configuration, 1NO Auxiliary Contacts, 28 A at 690 V Contact, AF12 Size, Screw Terminal, IP20 Enclosure, -60 to 80 deg C Operating, 45 mm W x 77 mm D x 86 mm H Dimensions
AF12-30-10-12 Application
For controlling 3 ph motors, non-inductive or slightly inductive loadsAF12-30-10-12 Item Features
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
- 28 A at 690 V, 24 A at 690 V rated operational current AC-1
- 12 A at 220/230/240 V, 12 A at 380/400 V, 12 A at 415 V, 12 A at 440 V, 12.5 A at 500 V, 9 A at 690 V rated operational current AC-3
- 3 hp at 220 to 240 VAC 3 ph, 7-1/2 hp at 440 to 480 VAC 3 ph, 10 hp at 550 to 600 VAC 3 ph, 1 hp at 120 VAC 1 ph, 3 hp at 200 to 208 VAC 3 ph, 2 hp at 240 VAC 1 ph
- 3 kW at 220/230/240 V, 5.5 kW at 380/400 V, 5.5 kW at 415 V, 5.5 kW at 440 V, 7.5 kW at 500 V, 7.5 kW at 690 V, 5.5 kW at 400 V
AF12-30-10-12 Standards
BAA Compliant|BV Certified|CB Certified|CCC Certified|CSA C22.2 No.14|DNV GL Certified|IEC 60947-1/60947-4-1|LR Certified|RMRS Certified|UL 508SKU #2261767Part Number #AF12-30-10-12UNSPSC39121529UPC03471523110328
