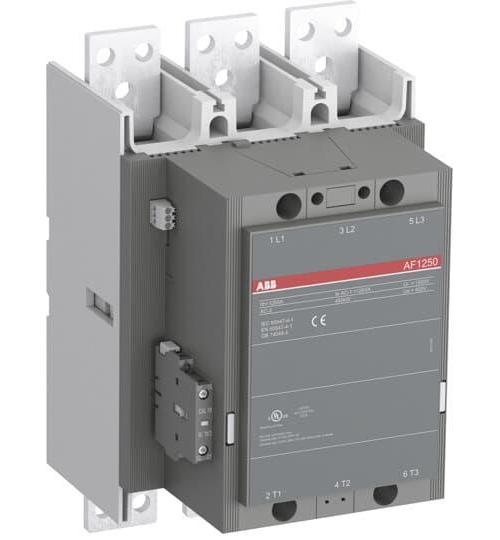

ABB AF1250-30-11-69 Line Contactor
Part Number # AF1250-30-11-69
SKU # 2346219
$8053.25 / Each
ABB AF1250-30-11-69 Key Features
Brand: ABB
Part Number # AF1250-30-11-69
SKU #2346219
Coil Voltage: 48 to 130, 48 to 130 VAC/VDC
Contact Configuration: 3NO
Contact Rating: 1260 A at 1000 V
Dimensions: 210 mm W x 242 mm D x 344 mm H
Enclosure Type: IP00/IP20, IP20/IP00
Number of Auxiliary Contacts: 1NO-1NC
Number of Poles: 3
Operating Cycles: 500000, 500000 Cycles
Operating Temperature: -40 to 70, -40 to 70 deg C
Series: AF Series
Size: AF1250
Terminal Type: Screw
Type: Non-Reversing
Country of origin: SE
Manufacturer Name: ABB
UNSPSC: 39121529
UPC: 07320500355077
$8053.25 / Each
- ABB Line Contactor, Non-Reversing, Series: AF Series, 48 to 130 VAC/VDC Coil, 1210 A Maximum Load Current, 3 Pole, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 1260 A at 1000 V Contact, AF1250 Size, Screw Terminal, IP00/IP20 Enclosure, 500000 Cycles Operating Cycles, -40 to 70 deg C Operating, 210 mm W x 242 mm D x 344 mm H Dimensions
AF1250-30-11-69 Application
For various applications such as, isolation, by-pass and distribution application up to max 1000 VAF1250-30-11-69 Item Features
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC)
- Only 4 coils for AF1250 to cover control voltages between 48 to 500 V 50/60 Hz and 24 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- 1260 A at 1000 V, 1040 A at 1000 V, 875 A at 1000 V, 1260 A at 690 V, 1040 A at 690 V, 875 A at 690 V rated operational current AC-1
AF1250-30-11-69 Standards
BV Certified|CB Certified|CCC Certified|LR Certified|RMRS CertifiedSKU #2346219Part Number #AF1250-30-11-69UNSPSC39121529UPC07320500355077
