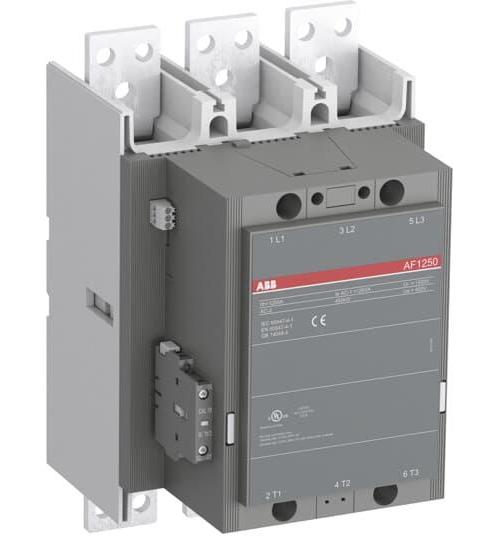

ABB AF1250-30-11-70 Line Contactor

2282456 MFG #: AF1250-30-11-70
$5,373.82 / EA
Usually Ships within 5-8 Days
  • Coil Voltage: 100 to 250
  • Contact Configuration: 3NO
  • Contact Rating: 1260 A at 1000 V
  • Dimensions: 210 mm W x 242 mm D x 344 mm H
  • Enclosure Type: IP20/IP00
  • Maximum Load Current: 1210
  • Number of Auxiliary Contacts: 1NO-1NC
  • Number of Poles: 3
  • Operating Cycles: 500000
  • Operating Temperature: -40 to 70
  • Series: AF Series
  • Size: AF1250
  • Terminal Type: Screw
  • Type: Non-Reversing

ABB AF1250-30-11-70 Line Contactor

ABB Line Contactor, Non-Reversing, Series: AF Series, 100 to 250 VAC/VDC Coil, 1210 A Maximum Load Current, 3 Pole, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 1260 A at 1000 V Contact, AF1250 Size, Screw Terminal, IP20/IP00 Enclosure, 500000 Cycles Operating Cycles, -40 to 70 deg C Operating, 210 mm W x 242 mm D x 344 mm H Dimensions

Additional Description: ABB -AF1250-30-11-70 AF1250,3P CONTR,100-250A AC/DC

Catalog Description: A 3-phase Contactor suitable for various applications such as, Isolation, By-pass and Distribution application up to max 1000 V. Operated with wide control voltage range 100-250 V, AC/DC

  • Specifications
  • Compact, space saving design
  • 1260 A at 1000 V, 1040 A at 1000 V, 875 A at 1000 V, 1260 A at 690 V, 1040 A at 690 V, 875 A at 690 V rated operational current AC-1
  • Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC)
  • Only 4 coils for AF1250 to cover control voltages between 48 to 500 V 50/60 Hz and 24 to 500 VDC
  • Can manage large control voltage variations
  • Reduced panel energy consumption
  • Very distinct closing and opening
  • Can withstand short voltage dips and voltage sags
  • Built-in surge suppression
  • Add-on auxiliary contact blocks for side mounting and a wide range of accessories
