Part Number # AF12Z-30-10-30
SKU # 2465872
AF12Z-30-10-30
ABB AF12Z-30-10-30
Part Number # AF12Z-30-10-30
SKU # 2465872
ABB AF12Z-30-10-30 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF12Z-30-10-30 |
| SKU #: | 2465872 |
| Dimensions: | 86 mm H x 45 mm W x 97 mm D |
| Connection type: | Screw Terminals |
| UNSPSC: | 39121529 |
| UPC: | 03471523113596 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB AF12Z-30-10-30
Brand: ABB
Part Number: AF12Z-30-10-30
Additional Description: ABB -AF12Z-30-10-30 AF12Z, 3P, 1NO0NC, 24VDC
Catalog Description: AF12Z 3-pole contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF12Z contactors with coil 30 include a 24 V DC electronic coil interface with a built-in surge suppression, obtaining a reduced holding coil consumption up to 1.7 W for a low panel energy consumption and a direct control by PLC-output ? 250 mA 24 V DC, without need of additional interface relay. Only AF..Z..-30 contactors need to respect the polarity on the coil terminals (A1+ and A2-). The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks. (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Accessories: a wide range of accessories is available.
AF12Z-30-10-30 Application
used for controlling power circuits up to 690 V AC and 220 V DCAF12Z-30-10-30 Item Features
- Mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads
- AF12Z contactors with coil 30 include a 24 V DC electronic coil interface with a built-in surge suppression, obtaining a reduced holding coil consumption up to 1.7 W for a low panel energy consumption and a direct control by PLC-output 250 mA 24 V DC, without need of additional interface relay
- AF... series 4-pole contactors are of the block type design
AF12Z-30-10-30 Standards
IEC 60947-5-1|IEC 60947-4-1|PROP65SKU #2465872Part Number #AF12Z-30-10-30UNSPSC39121529UPC03471523113596

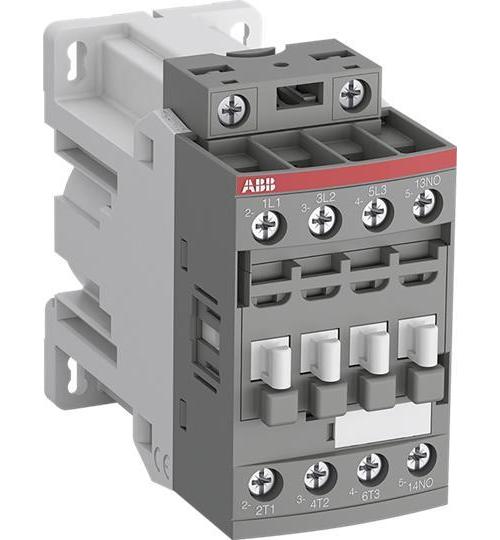

Image provided may only be a representation of final product and may include optional equipment
