Part Number # AF140-30-11-14
SKU # 2335423
Image Disclaimers Message
AF140-30-11-14

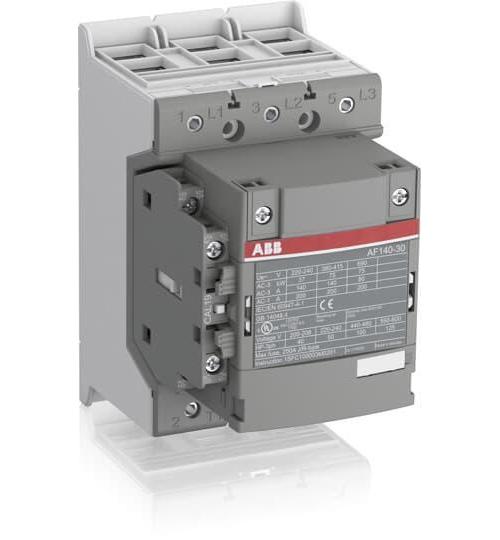

ABB AF140-30-11-14 Line Contactor
Part Number # AF140-30-11-14
SKU # 2335423
ABB AF140-30-11-14 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF140-30-11-14 |
| SKU #: | 2335423 |
| Coil Power Rating: | 40 hp, 50 hp, 100 hp, 125 hp |
| Coil Voltage: | 250 to 500, 250 to 500 VAC/VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 200 A at 690 V |
| Dimensions: | 90 mm W x 126 mm D x 150 mm H |
| Enclosure Type: | IP00/IP20, IP20/IP00 |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 5000000, 5000000 Cycles |
| Operating Temperature: | -40 to 70, -40 to 70 deg C |
| Series: | AF Series |
| Size: | AF140 |
| Terminal Type: | Screw |
| Type: | Non-Reversing |
| Wattage: | 37/75/90, 37/75/90 kW |
| Country of origin: | SE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 07320500477076 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB AF140-30-11-14 Line Contactor
Brand: ABB
Part Number: AF140-30-11-14
ABB Line Contactor, Non-Reversing, Series: AF Series, 250 to 500 VAC/VDC Coil, 200 A Maximum Load Current, 40 hp, 50 hp, 100 hp, 125 hp Coil, 3 Pole, 37/75/90 kW Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 200 A at 690 V Contact, AF140 Size, Screw Terminal, IP00/IP20 Enclosure, 5000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 90 mm W x 126 mm D x 150 mm H Dimensions
Additional Description: ABB -AF140-30-11-14 CTR,3P,130A,250-500VAC/DC,1/1
Catalog Description: A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 690 V. Operated with wide control voltage range 250-500 V, 50/60 Hz and DC
AF140-30-11-14 Application
For various applications such as motor starting, isolation, by-pass and distribution application up to max 690 VAF140-30-11-14 Item Features
- For connection with built-in cable clamps
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- 200 A at 690 V, 160 A at 690 V rated operational current AC-1
- 140 A at 220/230/240 V, 140 A at 380/400 V, 140 A at 415 V, 140 A at 440 V, 130 A at 500 V, 80 A at 690 V rated operational current AC-3
- 40 hp at 200 VAC 3 ph, 40 hp at 208 VAC 3 ph, 50 hp at 220 to 240 VAC 3 ph, 100 hp at 440 to 480 VAC 3 ph, 125 hp at 550 to 600 VAC 3 ph
- 37 kW at 220/230/240 V, 75 kW at 380/400 V, 75 kW at 415 V, 90 kW at 440 V, 90 kW at 500 V, 75 kW at 690 V
AF140-30-11-14 Standards
BV Certified|CB Certified|CCC Certified|CE Certified|DNV GL Certified|LR Certified|RMRS Certified|RINA Certified|RoHS CompliantSKU #2335423Part Number #AF140-30-11-14UNSPSC39121529UPC07320500477076
