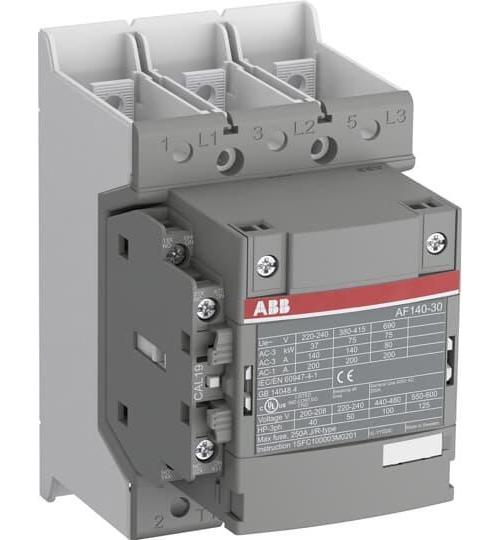

ABB AF140-30-11B-12 Line Contactor
![PDP image](https://do1jvmih5t6vs.cloudfront.net/userfiles/ad/large/abb_af140-30-11b-14.jpg)
Image Disclaimers Message
ABB AF140-30-11B-12 Line Contactor
ABB AF140-30-11B-12 Line Contactor
Part #:AF140-30-11B-12
SKU #: 2288707
Key Features
Part #:AF140-30-11B-12
SKU #: 2288707
Brand: ABB
Coil Power Rating: 40 hp, 50 hp, 100 hp, 125 hp
Coil Voltage: 48 to 130, 48 to 130 VAC/VDC
Contact Configuration: 3NO
Contact Rating: 200 A at 690 V
Dimensions: 90 mm W x 126 mm D x 150 mm H
- Busbar connections
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- 200 A at 690 V, 160 A at 690 V rated operational current AC-1
- 140 A at 220/230/240 V, 140 A at 380/400 V, 140 A at 415 V, 140 A at 440 V, 130 A at 500 V, 80 A at 690 V rated operational current AC-3
- 40 hp at 200 VAC 3 ph, 40 hp at 208 VAC 3 ph, 50 hp at 220 to 240 VAC 3 ph, 100 hp at 440 to 480 VAC 3 ph, 125 hp at 550 to 600 VAC 3 ph
- 37 kW at 220/230/240 V, 75 kW at 380/400 V, 75 kW at 415 V, 90 kW at 440 V, 90 kW at 500 V, 75 kW at 690 V
ABB AF140-30-11B-12 Line Contactor
ABB Line Contactor, Non-Reversing, Series: AF Series, 48 to 130 VAC/VDC Coil, 200 A Maximum Load Current, 40 hp, 50 hp, 100 hp, 125 hp Coil, 3 Pole, 37/75/90 kW Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 200 A at 690 V Contact, AF140 Size, Screw Terminal, IP00/IP20 Enclosure, 5000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 90 mm W x 126 mm D x 150 mm H Dimensions
Additional Description: ABB -AF140-30-11B-12 CTR,3P,130A,48-130VAC/DC,1/1
Catalog Description: A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 690 V. Operated with wide control voltage range 48-130 V, 50/60 Hz and DC
