Part Number # AF140-40-11-11
SKU # 2459293
AF140-40-11-11
ABB AF140-40-11-11
Part Number # AF140-40-11-11
SKU # 2459293
$951.55 / Each
Typical price:$1226.03 / Each
ABB AF140-40-11-11 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF140-40-11-11 |
| SKU #: | 2459293 |
| Coil Power Rating: | 37/75/90 kW |
| Coil Voltage: | 24 to 60 V AC, 20 to 60 V DC |
| Dimensions: | 150 mm H x 120 mm W x 128 mm D |
| Type: | 3-Phase AC/DC Operated |
| Connection type: | Cable Clamp |
| UNSPSC: | 39121529 |
| UPC: | 07320500503768 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$951.55 / Each
Typical price:$1226.03 / Each
Quantity:
- ABB IEC Contactor, 3-Phase AC/DC Operated, 24 to 60 V AC, 20 to 60 V DC Coil, 175/200 A Maximum Load Current, 37/75/90 kW Coil, 4 Pole, 50/60 Hz Frequency, 4NO Contact Configuration, 1NO-1NC Auxiliary Contacts, Cable Clamp Connection, Screw Terminal, IP00/IP20 Enclosure, 5000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 150 mm H x 120 mm W x 128 mm D Dimensions
AF140-40-11-11 Application
For controlling non-inductive or slightly inductive loads (resistance furnaces) and generally for controlling power circuits up to 690 VAC and 350 VDC, motor starting, isolation, by-pass and distribution application up to maximum 690 VAF140-40-11-11 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- 37 kW at 220 to 230 to 240 V, 75 kW at 380 to 400/415 V, 90 kW at 440 V
- 175 A at 600 V UL/CSA, 200 A at 1-phase 690 V IEC
AF140-40-11-11 Standards
IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 60947-4-1SKU #2459293Part Number #AF140-40-11-11UNSPSC39121529UPC07320500503768

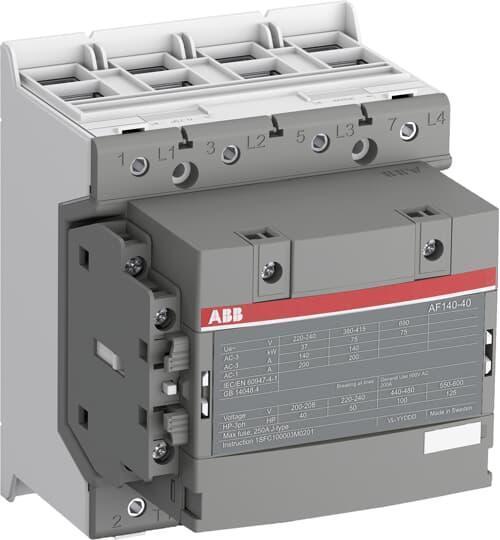

Image provided may only be a representation of final product and may include optional equipment
