Part Number # AF146-30-00-13
SKU # 2446052
Image Disclaimers Message
Brand: ABB
AF146-30-00-13

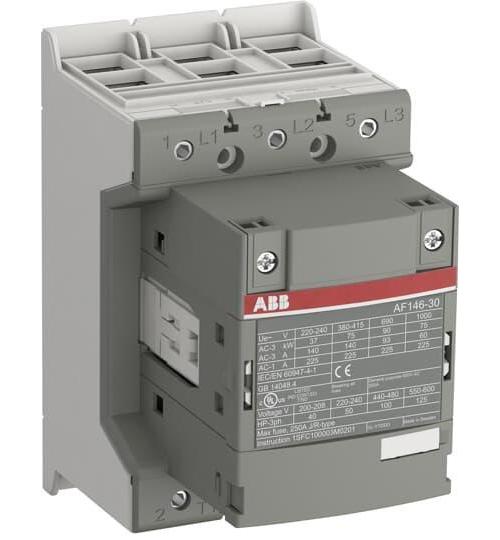

ABB AF146-30-00-13
Part Number # AF146-30-00-13
SKU # 2446052
$647.55 / Each
Typical price:$1202.49 / Each
ABB AF146-30-00-13 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF146-30-00-13 |
| SKU #: | 2446052 |
| Coil Power Rating: | 75 kW, 100 hp, 125 hp |
| Coil Voltage: | 100 to 250 V AC/DC, 100 to 250 VAC/VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 150 mm H x 90 mm W x 126 mm D |
| Enclosure Type: | IP00/IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 5000000 Cycles |
| Operating Temperature: | -40 to 70 deg C |
| Terminal Type: | Screw |
| Type: | 3-Phase AC/DC Operated |
| Connection type: | Cable Clamp |
| Country of origin: | SE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 07320500482032 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$647.55 / Each
Typical price:$1202.49 / Each
Quantity:
- ABB IEC Contactor, 3-Phase AC/DC Operated, 100 to 250 V AC/DC Coil, 130 A Maximum Load Current, 75 kW, 100 hp, 125 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, Cable Clamp Connection, Screw Terminal, IP00/IP20 Enclosure, 5000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 150 mm H x 90 mm W x 126 mm D Dimensions
AF146-30-00-13 Application
For controlling 3-phase motors and power circuits up to 1000 VAC and 260 VDC, motor starting, isolation, by-pass and distribution application up to maximum 1000 VAF146-30-00-13 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- 75 kW at 3-phase 400 V IEC, 100 hp at 440 to 480 VAC, 125 hp at 550 to 600 VAC
- 130 A at 220 to 240 VAC 3-phase UL/CSA
AF146-30-00-13 Standards
IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 60947-1|UL 60947-4-1A|CSA 60947-1|CSA 60947-4-1ASKU #2446052Part Number #AF146-30-00-13UNSPSC39121529UPC07320500482032
