Part Number # AF146-30-00-33
SKU # 2463640
AF146-30-00-33
ABB AF146-30-00-33
Part Number # AF146-30-00-33
SKU # 2463640
ABB AF146-30-00-33 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF146-30-00-33 |
| SKU #: | 2463640 |
| Dimensions: | 150 mm H x 90 mm W x 142.5 mm D |
| UNSPSC: | 39121529 |
| UPC: | 07320500481042 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB AF146-30-00-33
Brand: ABB
Part Number: AF146-30-00-33
ABB IEC Contactor, 3-Phase AC/DC Operated, 100 to 250 VAC/VDC Coil, 130 A Maximum Load Current, 75 kW, 100 hp, 125 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, Cable Clamp Connection, Screw Terminal, IP00/IP20 Enclosure, 5000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 150 mm H x 90 mm W x 142.5 mm D Dimensions
Additional Description: ABB -AF146-30-00-33 (N) CTR AF146 3POLE 100-250V NON-CANCELABLE, NON-RETURNABLE
Catalog Description: A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V. Controlled with PLC and with wide control voltage range 100-250 V, AC/DC
AF146-30-00-33 Application
For controlling 3-phase motors and power circuits up to 1000 VAC and 260 VDC, motor starting, isolation, by-pass and distribution application up to maximum 1000 VAF146-30-00-33 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- 75 kW at 3-phase 400 V IEC, 100 hp at 440 to 480 VAC, 125 hp at 550 to 600 VAC
- 130 A at 220 to 240 VAC 3-phase UL/CSA
AF146-30-00-33 Standards
IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 60947-1|UL 60947-4-1A|CSA 60947-1|CSA 60947-4-1ASKU #2463640Part Number #AF146-30-00-33UNSPSC39121529UPC07320500481042

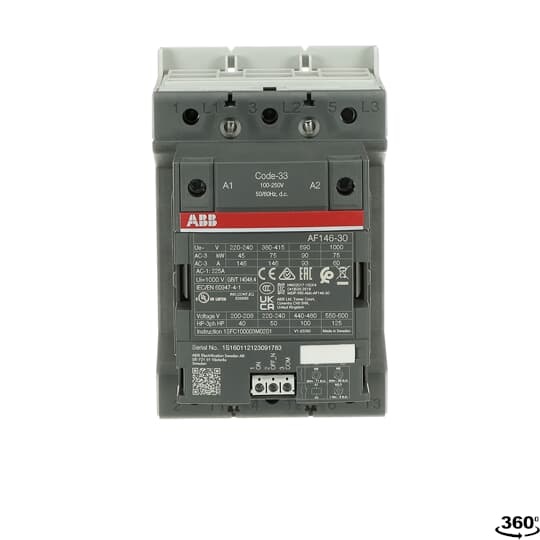

Image provided may only be a representation of final product and may include optional equipment
