Part Number # AF16-30-10-13
SKU # 2256942
Image Disclaimers Message
AF16-30-10-13

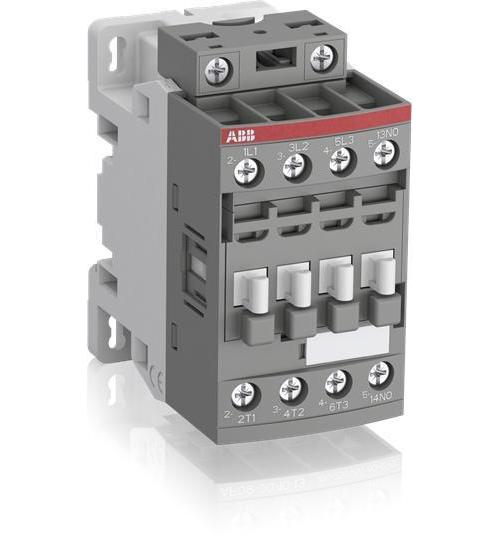

ABB AF16-30-10-13 AF16 Contactor, 100 VAC, 250 VDC V Coil, 30 A, 3NO Contact, 3 Poles
Part Number # AF16-30-10-13
SKU # 2256942
$82.77 / Each
Typical price:$156.85 / Each
ABB AF16-30-10-13 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF16-30-10-13 |
| SKU #: | 2256942 |
| Coil Voltage: | 100 VAC, 250 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 690, 690 VAC |
| Dimensions: | 86 mm H x 45 mm W x 77 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO |
| Number of Poles: | 3 |
| Operating Cycles: | 3600, 3600 Cycles |
| Operating Temperature: | -60 to 80, -60 to 80 deg C |
| Series: | AF16 |
| Terminal Type: | Screw |
| Wattage: | 9, 9 kW |
| Country of origin: | FR |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523110632 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$82.77 / Each
Typical price:$156.85 / Each
Quantity:
- ABB Contactor, Series: AF16, 100 VAC, 250 VDC Coil, 30 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, 9 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO Auxiliary Contacts, 690 VAC Contact, Screw Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -60 to 80 deg C Operating, DIN Rail Mounting, 86 mm H x 45 mm W x 77 mm D Dimensions
AF16-30-10-13 Specifications
- Non-reversing across the line contactor
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- AC or DC operated with electronic coil interface accepting a wide control voltage range, only 4 control voltage ranges covering 24 to 500 VAC, 50/60 Hz and 20 to 500 VDC can manage large control voltage variations
AF16-30-10-13 Application
For controlling 3-phase motors, non-inductive or slightly inductive loadsAF16-30-10-13 Item Features
- Non-reversing across the line contactor
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- AC or DC operated with electronic coil interface accepting a wide control voltage range, only 4 control voltage ranges covering 24 to 500 VAC, 50/60 Hz and 20 to 500 VDC can manage large control voltage variations
AF16-30-10-13 Standards
RoHS Compliant|cUL|UL 508, UL File No. E312527|IEC/EN 60947-1/60947-4-1|CSA C22.2 No. 14|CB|CCC|CE|DNV|EAC|RINA CertifiedSKU #2256942Part Number #AF16-30-10-13UNSPSC39121529UPC03471523110632
