Part Number # AF16-30-10K-11
SKU # 2392326
Image Disclaimers Message
Brand: ABB
AF16-30-10K-11

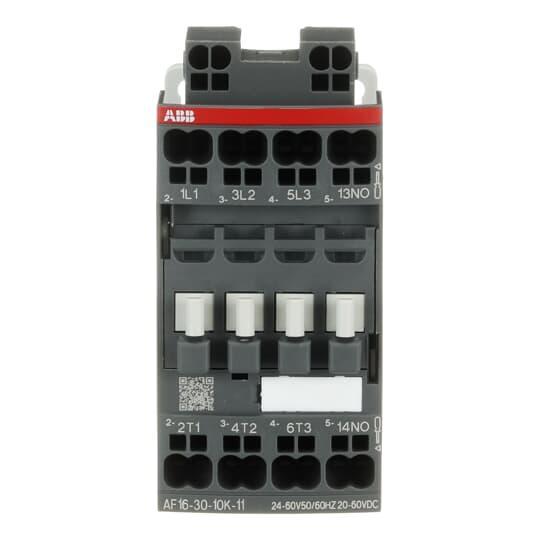

ABB AF16-30-10K-11 AF Auxiliary Block Contactor, 24 to 60 VAC/VDC V Coil, 3NO Contact, 3 Poles
Part Number # AF16-30-10K-11
SKU # 2392326
$165.64 / Each
Typical price:$197.96 / Each
ABB AF16-30-10K-11 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF16-30-10K-11 |
| SKU #: | 2392326 |
| Coil Voltage: | 24 to 60 V AC/DC, 24 to 60 VAC/VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 92.3 mm H x 45 mm W x 77 mm D |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO |
| Number of Poles: | 3 |
| Operating Temperature: | -60 to 80 deg C |
| Series: | AF |
| Type: | Auxiliary Block |
| Connection type: | Push-In Spring |
| Country of origin: | FR |
| Mounting type: | Contactor |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523154612 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$165.64 / Each
Typical price:$197.96 / Each
Quantity:
- ABB, AF16-30-10K-11, Contactor, Auxiliary Block, Series: AF, 24 to 60 V AC/DC Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 1NO Auxiliary Contacts, Push-In Spring Connection, -60 to 80 deg C Operating, Contactor Mounting, 92.3 mm H x 45 mm W x 77 mm D Dimensions
AF16-30-10K-11 Application
used for controlling power circuits up to 690 V AC and 220 V DCAF16-30-10K-11 Includes
Push-in Spring terminalsAF16-30-10K-11 Item Features
- They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads
- The contactors include an electronic coil interface accepting a wide control voltage Uc min to Uc max
- AF contactors have built-in surge protection and do not require additional surge suppressors
- Include Push-in Spring terminals
- Only one push is all you need for extremely fast wiring, faster than ever installation, easier than ever wiring, reliable as ever connections
AF16-30-10K-11 Standards
IEC 60947-5-1|IEC 60947-4-1|PROP65SKU #2392326Part Number #AF16-30-10K-11UNSPSC39121529UPC03471523154612
