AF1650-30-11-70

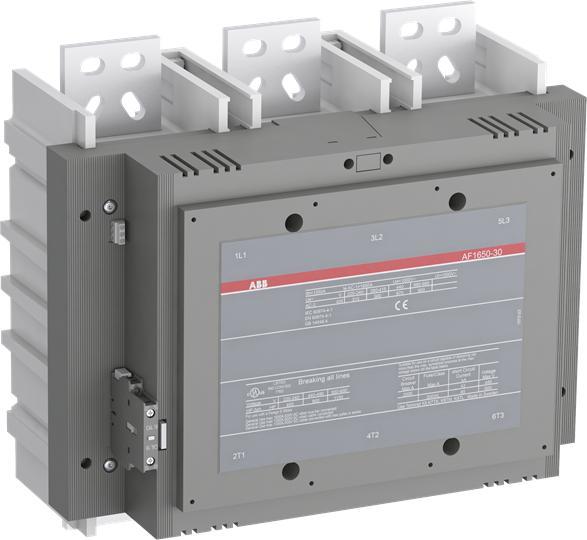

ABB AF1650-30-11-70 Line Contactor
Part Number # AF1650-30-11-70
SKU # 971474
$9858.98 / Each
Typical price:$21043.64 / Each
ABB AF1650-30-11-70 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF1650-30-11-70 |
| SKU #: | 971474 |
| Coil Power Rating: | 450 hp, 900 hp, 1150 hp |
| Coil Voltage: | 100 to 250, 100 to 250 V AC/DC, 100 to 250 VAC/VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 1650 A at 1000 V |
| Dimensions: | 438 mm W x 244 mm D x 392 mm H |
| Enclosure Type: | IP00/IP20, IP20/IP00 |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 500000, 500000 Cycles |
| Operating Temperature: | -40 to 70, -40 to 70 deg C |
| Series: | AF Series |
| Size: | AF1650 |
| Terminal Type: | Screw |
| Type: | Non-Reversing |
| Wattage: | 600/315/560/630/710/1000, 600/315/560/630/710/1000 kW |
| Country of origin: | SE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 07320500249703 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$9858.98 / Each
Typical price:$21043.64 / Each
Quantity:
- ABB Line Contactor, Non-Reversing, Series: AF Series, 100 to 250 V AC/DC Coil, 1350 A Maximum Load Current, 450 hp, 900 hp, 1150 hp Coil, 3 Pole, 600/315/560/630/710/1000 kW Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 1650 A at 1000 V Contact, AF1650 Size, Screw Terminal, IP00/IP20 Enclosure, 500000 Cycles Operating Cycles, -40 to 70 deg C Operating, 438 mm W x 244 mm D x 392 mm H Dimensions
AF1650-30-11-70 Application
For controlling single and 3 ph motors and switching power circuitsAF1650-30-11-70 Item Features
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC)
- Only 1 coil for AF1350 ... AF2650 to cover control voltages between 100 to 250 V 50/60 Hz and 100 to 250 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- 1650 A at 1000 V, 1450 A at 1000 V, 1270 A at 1000 V, 1650 A at 690 V, 1450 A at 690 V, 1270 A at 690 V rated operational current AC-1
- 1060 A at 220/230/240 V, 1060 A at 380/400 V, 1060 A at 415 V, 1060 A at 440 V, 970 A at 500 V, 970 A at 690 V rated operational current AC-3
- 450 hp at 220 to 240 VAC 3 ph, 900 hp at 440 to 480 VAC 3 ph, 1150 hp at 550 to 600 VAC 3 ph
- 600 kW at 1000 V, 315 kW at 220/230/240 V, 560 kW at 380/400 V, 630 kW at 415 V, 710 kW at 440 V, 710 kW at 500 V, 1000 kW at 690 V
AF1650-30-11-70 Standards
BAA Compliant|BV Certified|CB Certified|CCC Certified|CE Certified|GL Certified|LOVAG Certified|LR Certified|RMRS Certified|RINA Certified|RoHS CompliantSKU #971474Part Number #AF1650-30-11-70UNSPSC39121529UPC07320500249703
