Brand: ABB
ABB AF16ZB-22-00RT-21
Part Number # AF16ZB-22-00RT-21
SKU # 2466568
Brand: ABB
AF16ZB-22-00RT-21
ABB AF16ZB-22-00RT-21
Part Number # AF16ZB-22-00RT-21
SKU # 2466568
$206.31 / Each
Typical price:$347.67 / Each
ABB AF16ZB-22-00RT-21 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF16ZB-22-00RT-21 |
| SKU #: | 2466568 |
| Coil Power Rating: | 4/7.5/9 kW |
| Coil Voltage: | 24 to 60 V AC, 20 to 60 V DC |
| Dimensions: | 86 mm H x 45 mm W x 77 mm D |
| Type: | DC Operated Low Coil Consumption |
| Connection type: | Cable Clamp |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523129818 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$206.31 / Each
Typical price:$347.67 / Each
Quantity:
- ABB, AF16ZB-22-00RT-21, IEC Contactor, DC Operated Low Coil Consumption, 24 to 60 V AC, 20 to 60 V DC Coil, 30 A Maximum Load Current, 4/7.5/9 kW Coil, 4 Pole, 50/60 Hz Frequency, 2NO-2NC Contact Configuration, Cable Clamp Connection, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 86 mm H x 45 mm W x 77 mm D Dimensions
AF16ZB-22-00RT-21 Application
For controlling non-inductive or slightly inductive loads and generally for controlling power circuits up to690VAC and440VDCAF16ZB-22-00RT-21 Item Features
- 4 kW at 220 to 230 to 240 V, 7.5 kW at 380 to 400 V, 9 kW at 415/440/500/690 V
- Electronic coil interface accepting a wide DC control voltage range (0.85 Ucminimum to 1.1Ucmaximum according to IEC60947-4-1) including several Uc control voltages (0.7 to 1.25Uc according to IEC60077) used for battery supply
- Side by side mounting without restriction from -40to 70 deg C
- Designed in accordance to the applicable parts of IEC60077and EN50155standard
- Fire and smoke safety compliance to European standard EN 45545 (HL2, HL3 hazard levels)
- 30 A at 600 V UL/CSA, 1-phase 690 V IEC
- Shocks and vibration withstand conforming to IEC61373(category1, class B)
- Built-in surge suppression
AF16ZB-22-00RT-21 Standards
IEC 60947-4-1|EN 60947-1|UL 508|CSA C22.2 File No. 14|IEC 60077|EN 50155|IEC 61373|EN 45545SKU #2466568Part Number #AF16ZB-22-00RT-21UNSPSC39121529UPC03471523129818

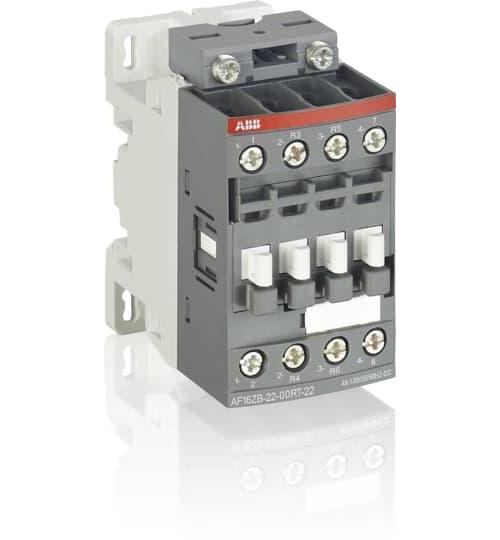

Image provided may only be a representation of final product and may include optional equipment
