Brand: ABB
ABB AF16ZB-30-10RT-21
Part Number # AF16ZB-30-10RT-21
SKU # 2464835
Brand: ABB
AF16ZB-30-10RT-21
ABB AF16ZB-30-10RT-21
Part Number # AF16ZB-30-10RT-21
SKU # 2464835
$168.33 / Each
Typical price:$283.64 / Each
ABB AF16ZB-30-10RT-21 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF16ZB-30-10RT-21 |
| SKU #: | 2464835 |
| Coil Power Rating: | 7.5 kW, 10 hp, 15 hp |
| Coil Voltage: | 24 to 60 V AC, 20 to 60 V DC |
| Dimensions: | 86 mm H x 45 mm W x 77 mm D |
| Type: | DC Operated Low Coil Consumption |
| Connection type: | Cable Clamp |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523128217 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$168.33 / Each
Typical price:$283.64 / Each
Quantity:
- ABB, AF16ZB-30-10RT-21, IEC Contactor, DC Operated Low Coil Consumption, 24 to 60 V AC, 20 to 60 V DC Coil, 17.5 A Maximum Load Current, 7.5 kW, 10 hp, 15 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 1NO Auxiliary Contacts, Cable Clamp Connection, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 86 mm H x 45 mm W x 77 mm D Dimensions
AF16ZB-30-10RT-21 Application
For controlling3-phase motors and power circuits up to690VAC and220VDCAF16ZB-30-10RT-21 Item Features
- Designed in accordance to the applicable parts of IEC60077and EN50155standard
- Shocks and vibration withstand conforming to IEC61373(category1, class B)
- Fire and smoke safety compliance to European standard EN 45545 (HL2, HL3 hazard levels)
- Electronic coil interface accepting a wide DC control voltage range (0.85 Ucminimum to 1.1Ucmaximum according to IEC60947-4-1) including several Uc control voltages (0.7 to 1.25Uc according to IEC60077) used for battery supply
- Built-in surge suppression
- Side by side mounting without restriction from -40 to 70 deg C
- 7.5 kW at 3-phase 400 V IEC, 10 hp at 440 to 480 VAC, 15 hp at 550 to 600 VAC
- 17.5 A at 200 to 208 VAC 3-phase UL/CSA
AF16ZB-30-10RT-21 Standards
IEC 60947-4-1|CSA 22.2 60947-4-1|IEC 60077|EN 50155|IEC 61373|EN 45545SKU #2464835Part Number #AF16ZB-30-10RT-21UNSPSC39121529UPC03471523128217

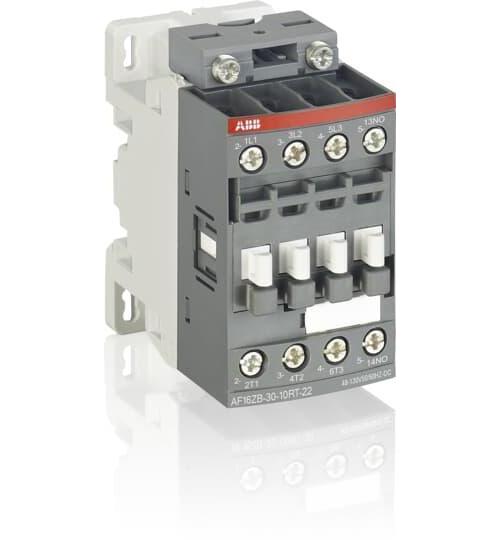

Image provided may only be a representation of final product and may include optional equipment
