AF205-30-11-11

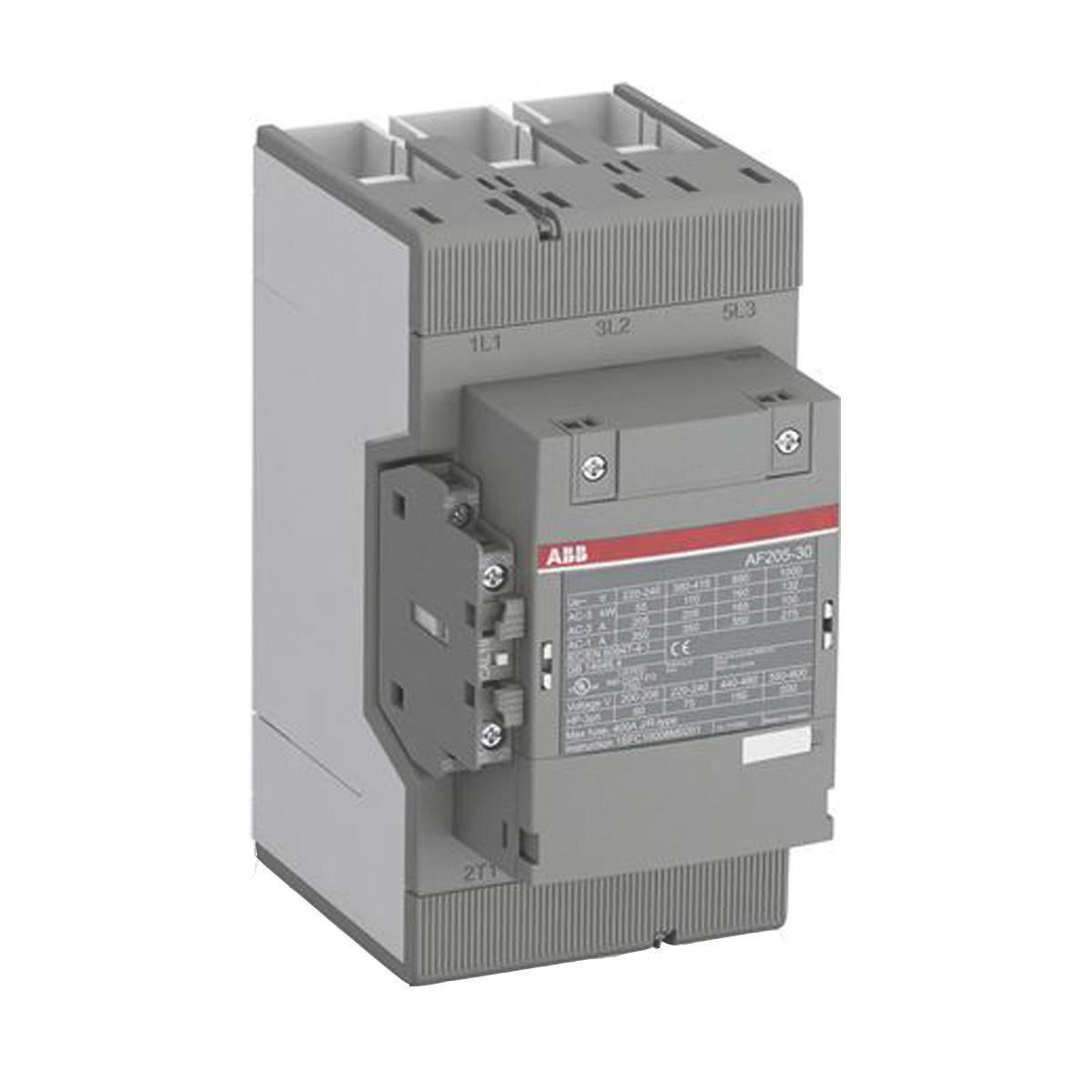

ABB AF205-30-11-11 IEC Contactor
Part Number # AF205-30-11-11
SKU # 2301853
$993.15 / Each
Typical price:$1844.26 / Each
ABB AF205-30-11-11 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF205-30-11-11 |
| SKU #: | 2301853 |
| Coil Power Rating: | 110 kW, 150 hp, 200 hp |
| Coil Voltage: | 24 to 60 V AC, 20 to 60 V DC, 24 to 60 VAC, 20 to 60 VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 196 mm H x 105 mm W x 152 mm D |
| Enclosure Type: | IP00/IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 5000000, 5000000 Cycles |
| Operating Temperature: | -25 to 50, -25 to 50 deg C |
| Series: | AF205 |
| Size: | 205 Frame |
| Terminal Type: | Screw |
| Type: | 3-Phase AC/DC Operated |
| Wattage: | 160 kW |
| Country of origin: | SE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 07320500480540 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$993.15 / Each
Typical price:$1844.26 / Each
Quantity:
- ABB, AF205-30-11-11, IEC Contactor, 3-Phase AC/DC Operated, Series: AF205, 24 to 60 V AC, 20 to 60 V DC Coil, 192 A Maximum Load Current, 110 kW, 150 hp, 200 hp Coil, 3 Pole, 50/60 Hz Frequency, 160 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 205 Frame Size, Screw Terminal, IP00/IP20 Enclosure, 5000000 Cycles Operating Cycles, -25 to 50 deg C Operating, 196 mm H x 105 mm W x 152 mm D Dimensions
AF205-30-11-11 Application
For controlling 3-phase motors and power circuits up to 1000VAC, motor starting, isolation, by-pass and distribution application up to maximum 1000 VAF205-30-11-11 Includes
Surge SupressionAF205-30-11-11 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- AF contactors can manage large control voltage variations one coil can be used for different control voltages used worldwide without any coil change
- AF series contactor coils are designed to utilize both AC (50/60 Hz) and DC control circuit inputs ranging from 24 to 500 VAC
- Main poles and auxiliary contact blocks 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically linked auxiliary contacts compliant with Annex L of IEC 60947-5-1)
- 8 kV rated impulse withstand voltage
- 600/1000 VAC rated insulation voltage
- 3000 m maximum operating altitude permissible
- 60 hp at 208 VAC/150 hp at 440/480 VAC/200 hp 550/600 VAC/75 hp at 220/240 VAC/60 hp at 200 VAC 3-phase power rating
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- These contactors are of the block type design with 3 main poles
- 192 A at 220 to 240 VAC 3-phase UL/CSA
AF205-30-11-11 Standards
RoHS Compliant|CSA 60947-4-1A|CB Certified|RINA Approved|UL 508|CSA C22.2 No. 14|IEC/EN 60947-4-1SKU #2301853Part Number #AF205-30-11-11UNSPSC39121529UPC07320500480540
