Part Number # AF205-30-11-12
SKU # 2282118
Image Disclaimers Message
AF205-30-11-12

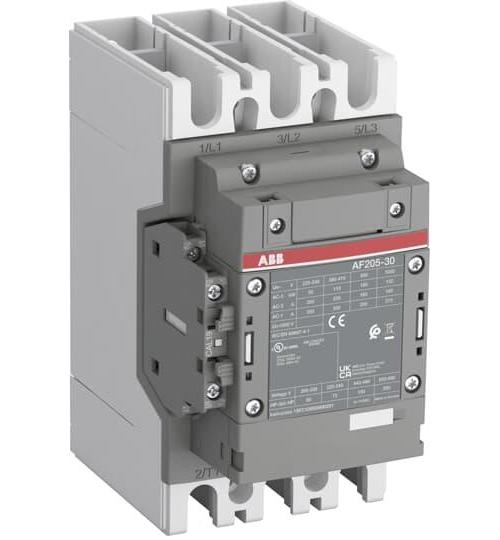

ABB AF205-30-11-12 Line Contactor
Part Number # AF205-30-11-12
SKU # 2282118
$993.15 / Each
Typical price:$1844.26 / Each
ABB AF205-30-11-12 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF205-30-11-12 |
| SKU #: | 2282118 |
| Coil Power Rating: | 60 hp, 75 hp, 150 hp, 200 hp |
| Coil Voltage: | 48 to 130, 48 to 130 V AC/DC, 48 to 130 VAC/VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 275 A at 1000 V |
| Dimensions: | 105 mm W x 152 mm D x 196 mm H |
| Enclosure Type: | IP00/IP20, IP20/IP00 |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 5000000, 5000000 Cycles |
| Operating Temperature: | -40 to 70, -40 to 70 deg C |
| Series: | AF Series |
| Size: | AF205 |
| Terminal Type: | Box Lug |
| Type: | Non-Reversing |
| Wattage: | 132/55/110/160, 132/55/110/160 kW |
| Country of origin: | SE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 07320500480557 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$993.15 / Each
Typical price:$1844.26 / Each
Quantity:
- ABB Line Contactor, Non-Reversing, Series: AF Series, 48 to 130 V AC/DC Coil, 300 A Maximum Load Current, 60 hp, 75 hp, 150 hp, 200 hp Coil, 3 Pole, 132/55/110/160 kW Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 275 A at 1000 V Contact, AF205 Size, Box Lug Terminal, IP00/IP20 Enclosure, 5000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 105 mm W x 152 mm D x 196 mm H Dimensions
AF205-30-11-12 Application
For various applications such as motor starting, isolation, by-pass and distribution application up to max 1000 VAF205-30-11-12 Item Features
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- 275 A at 1000 V, 250 A at 1000 V, 200 A at 1000 V, 350 A at 690 V, 300 A at 690 V, 240 A at 690 V rated operational current AC-1
- 100 A at 1000 V, 205 A at 220/230/240 V, 205 A at 380/400 V, 205 A at 415 V, 205 A at 440 V, 165 A at 500 V, 165 A at 690 V rated operational current AC-3
- 60 hp at 200 VAC 3 ph, 60 hp at 208 VAC 3 ph, 75 hp at 220 to 240 VAC 3 ph, 150 hp at 440 to 480 VAC 3 ph, 200 hp at 550 to 600 VAC 3 ph
- 132 kW at 1000 V, 55 kW at 220/230/240 V, 110 kW at 380/400 V, 110 kW at 415 V, 132 kW at 440 V, 110 kW at 500 V, 160 kW at 690 V
AF205-30-11-12 Standards
BV Certified|CB Certified|CCC Certified|DNV GL Certified|LR Certified|RMRS CertifiedSKU #2282118Part Number #AF205-30-11-12UNSPSC39121529UPC07320500480557
