ABB

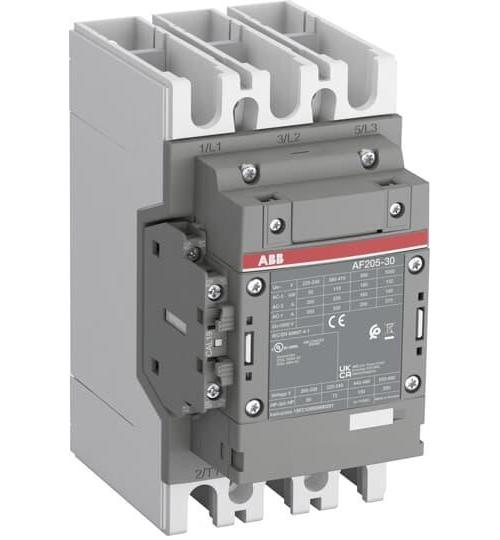

ABB AF205-30-11-14 Line Contactor

2370243 MFG #: AF205-30-11-14
$531.06 / EA
Usually Ships within 5-8 Days
ABB AF205-30-11-14 Line Contactor
  • Coil Power Rating: 60 hp, 75 hp, 150 hp, 200 hp
  • Coil Voltage: 250 to 500
  • Contact Configuration: 3NO
  • Dimensions: 105 mm W x 152 mm D x 196 mm H
  • Enclosure Type: IP20/IP00
  • Maximum Load Current: 300
  • Number of Auxiliary Contacts: 1NO-1NC
  • Number of Poles: 3
  • Operating Cycles: 5000000
  • Operating Temperature: -40 to 70
  • Series: AF Series
  • Size: AF205
  • Terminal Type: Screw
  • Type: Non-Reversing
  • Wattage: 132/55/110/160

ABB AF205-30-11-14 Line Contactor

ABB Line Contactor, Non-Reversing, Series: AF Series, 250 to 500 VAC/VDC Coil, 300 A Maximum Load Current, 60 hp, 75 hp, 150 hp, 200 hp Coil, 3 Pole, 132/55/110/160 kW Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, AF205 Size, Screw Terminal, IP20/IP00 Enclosure, 5000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 105 mm W x 152 mm D x 196 mm H Dimensions

Additional Description: ABB -AF205-30-11-14 CTR,3P,192A,250-500VAC/DC,1/1

Catalog Description: A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V. Operated with wide control voltage range 250-500 V, 50/60 Hz and DC

QTY
Add to List
  • Specifications
  • Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
  • Can manage large control voltage variations
  • Reduced panel energy consumption
  • Very distinct closing and opening
  • Can withstand short voltage dips and voltage sags
  • Built-in surge suppression
  • Add-on auxiliary contact blocks for side mounting and a wide range of accessories
  • 60 hp at 200 VAC 3 ph, 60 hp at 208 VAC 3 ph, 75 hp at 220 to 240 VAC 3 ph, 150 hp at 440 to 480 VAC 3 ph, 200 hp at 550 to 600 VAC 3 ph
  • 132 kW at 1000 V, 55 kW at 220/230/240 V, 110 kW at 380/400 V, 110 kW at 415 V, 132 kW at 440 V, 110 kW at 500 V, 160 kW at 690 V
