Brand: ABB
ABB AF205-30-22-14
Part Number # AF205-30-22-14
SKU # 2467647
Brand: ABB
AF205-30-22-14
ABB AF205-30-22-14
Part Number # AF205-30-22-14
SKU # 2467647
$935.43 / Each
Typical price:$1576.30 / Each
ABB AF205-30-22-14 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF205-30-22-14 |
| SKU #: | 2467647 |
| UNSPSC: | 39121529 |
| UPC: | 07320500480618 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$935.43 / Each
Typical price:$1576.30 / Each
Quantity:
- ABB IEC Contactor, 3-Phase AC/DC Operated, 250 to 500 V AC/DC Coil, 192 A Maximum Load Current, 110 kW, 150 hp, 200 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 2NO-2NC Auxiliary Contacts, Flat Connection, Screw Terminal, IP00/IP20 Enclosure, 5000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 196 mm H x 105 mm W x 152 mm D Dimensions
AF205-30-22-14 Application
For controlling 3-phase motors and power circuits up to 1000 VAC and up to 340 VDC, motor starting, isolation, by-pass and distribution application up to maximum 1000 VAF205-30-22-14 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- 110 kW at 3-phase 400 V IEC, 150 hp at 440 to 480 VAC, 200 hp at 550 to 600 VAC
- 192 A at 550 to 600 VAC 3-phase UL/CSA
AF205-30-22-14 Standards
IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 60947-1|UL 60947-4-1A|CSA 60947-1|CSA 60947-4-1ASKU #2467647Part Number #AF205-30-22-14UNSPSC39121529UPC07320500480618

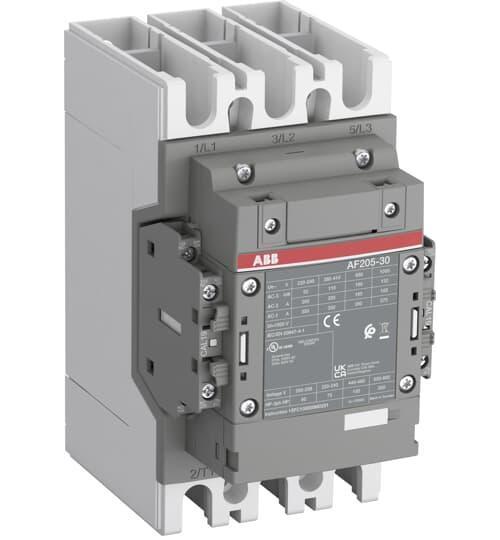

Image provided may only be a representation of final product and may include optional equipment
