Part Number # AF205-40-22-13
SKU # 2400704
Image Disclaimers Message
Brand: ABB
AF205-40-22-13

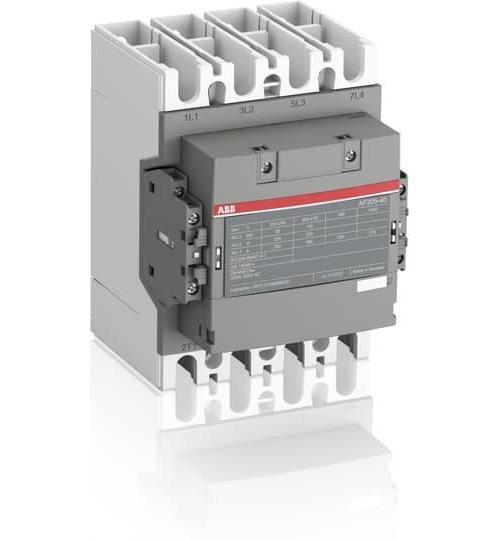

ABB AF205-40-22-13 Iec Contactor
Part Number # AF205-40-22-13
SKU # 2400704
$1078.54 / Each
Typical price:$1431.22 / Each
ABB AF205-40-22-13 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF205-40-22-13 |
| SKU #: | 2400704 |
| Coil Power Rating: | 55/110/132 kW |
| Coil Voltage: | 100 to 250 V AC/DC, 100 to 250 VAC/VDC |
| Contact Configuration: | 4NO |
| Dimensions: | 196 mm H x 140 mm W x 152.5 mm D |
| Enclosure Type: | IP00/IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 4 |
| Operating Cycles: | 5000000 Cycles |
| Operating Temperature: | -40 to 70 deg C |
| Terminal Type: | Screw |
| Type: | 3-Phase AC/DC Operated |
| Connection type: | Flat |
| Country of origin: | SE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 07320500503645 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1078.54 / Each
Typical price:$1431.22 / Each
Quantity:
- ABB IEC Contactor, 3-Phase AC/DC Operated, 100 to 250 V AC/DC Coil, 250/350 A Maximum Load Current, 55/110/132 kW Coil, 4 Pole, 50/60 Hz Frequency, 4NO Contact Configuration, 2NO-2NC Auxiliary Contacts, Flat Connection, Screw Terminal, IP00/IP20 Enclosure, 5000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 196 mm H x 140 mm W x 152.5 mm D Dimensions
AF205-40-22-13 Application
For controlling non-inductive or slightly inductive loads (resistance furnaces) and generally for controlling power circuits up to 1000 VAC and 440 VDC, motor starting, isolation, by-pass and distribution application up to maximum 1000 VAF205-40-22-13 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- 55 kW at 220 to 230 to 240 V, 110 kW at 380 to 400/415 V, 132 kW at 440 V
- 250 A at 400 V UL/CSA, 350 A at 1-phase 1000 V IEC
AF205-40-22-13 Standards
IEC 60947-1|IEC 60947-4-1|IEC EN 60947-1|IEC 60947-4-1|UL 60947-4-1SKU #2400704Part Number #AF205-40-22-13UNSPSC39121529UPC07320500503645
