Part Number # AF205R-30-22-13
SKU # 2416876

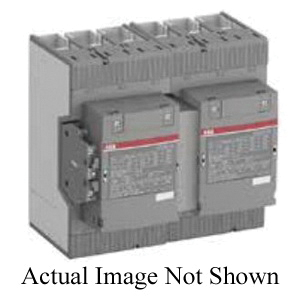

Image Disclaimers Message
Brand: ABB
AF205R-30-22-13
ABB AF205R-30-22-13 Iec Contactor
Part Number # AF205R-30-22-13
SKU # 2416876
$1951.37 / Each
Typical price:$3623.66 / Each
ABB AF205R-30-22-13 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF205R-30-22-13 |
| SKU #: | 2416876 |
| Coil Power Rating: | 110 kW, 150 hp, 200 hp |
| Coil Voltage: | 100 to 250 V AC/DC, 100 to 250 VAC/VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 7.72 in H x 4.13 in W x 5.98 in D |
| Enclosure Type: | IP00/IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 5000000 Cycles |
| Operating Temperature: | -40 to 70 deg C |
| Terminal Type: | Screw |
| Type: | AC/DC Operated Reversing |
| Connection type: | Flat |
| Country of origin: | CA |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 07320500559345 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1951.37 / Each
Typical price:$3623.66 / Each
Quantity:
- ABB IEC Contactor, AC/DC Operated Reversing, 100 to 250 V AC/DC Coil, 192 A Maximum Load Current, 110 kW, 150 hp, 200 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 2NO-2NC Auxiliary Contacts, Flat Connection, Screw Terminal, IP00/IP20 Enclosure, 5000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 7.72 in H x 4.13 in W x 5.98 in D Dimensions
AF205R-30-22-13 Application
For directionally controlling 3-phase motor circuits up to 690 VACAF205R-30-22-13 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- Can withstand short voltage dips and voltage sags
- 110 kW at 3-phase 400 V IEC, 150 hp at 440 to 480 VAC, 200 hp at 550 to 600 VAC
- 192 A at 220 to 240 VAC 3-phase UL/CSA
AF205R-30-22-13 Standards
IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 60947-1|UL 60947-4-1A|CSA 60947-1|CSA 60947-4-1ASKU #2416876Part Number #AF205R-30-22-13UNSPSC39121529UPC07320500559345
