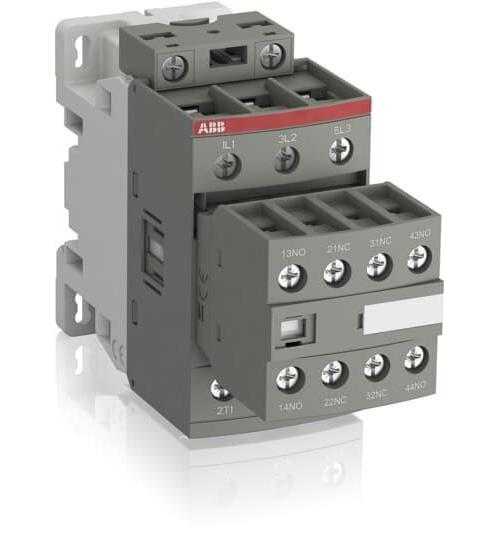

ABB AF26-30-22-13 Non-Reversing Line Contactor
Part Number # AF26-30-22-13
SKU # 2423820
ABB AF26-30-22-13 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF26-30-22-13 |
| SKU #: | 2423820 |
| Coil Power Rating: | 11 kW, 15 hp, 20 hp, 7-1/2 hp, 15 hp, 20 hp, 2 hp, 3 hp |
| Coil Voltage: | 100 to 250 V AC/DC, 100 to 250 VAC/VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 45 A at 690 V |
| Dimensions: | 45 mm W x 119.5 mm D x 86 mm H, 86 mm H x 45 mm W x 119.5 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -40 to 70 deg C |
| Series: | AF Series |
| Size: | AF26 |
| Terminal Type: | Screw |
| Type: | AC/DC Operated, Non-Reversing |
| Wattage: | 6.5/11/15 kW |
| Connection type: | Cable Clamp |
| Country of origin: | FR |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523111134 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB AF26-30-22-13 Non-Reversing Line Contactor
Brand: ABB
Part Number: AF26-30-22-13
ABB Line Contactor, Non-Reversing, Series: AF Series, 100 to 250 VAC/VDC Coil, 45 A Maximum Load Current, 7-1/2 hp, 15 hp, 20 hp, 2 hp, 3 hp Coil, 3 Pole, 6.5/11/15 kW Wattage, 3NO Contact Configuration, 2NO-2NC Auxiliary Contacts, 45 A at 690 V Contact, AF26 Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 45 mm W x 119.5 mm D x 86 mm H Dimensions
Additional Description: ABB -AF26-30-22-13 CTR,3P,25.3A,100-250VAC/DC,2/2
Catalog Description: AF26 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF... series 2-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles with a non-removable front-mounted 2 N.O. + 2 N.C. auxiliary contact block, side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 including the "Mechanically Linked" symbol on the c
AF26-30-22-13 Application
For controlling 3-phase motors and power circuits up to 690 VAC and 220 VDCAF26-30-22-13 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- 11 kW at 3-phase 400 V IEC, 15 hp at 440 to 480 VAC, 20 hp at 550 to 600 VAC
- 25.3 A at 200 to 208 VAC 3-phase UL/CSA
AF26-30-22-13 Standards
IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 508|CSA 22.2 60947-4-1SKU #2423820Part Number #AF26-30-22-13UNSPSC39121529UPC03471523111134
