Brand: ABB
AF26Z-30-00K-21

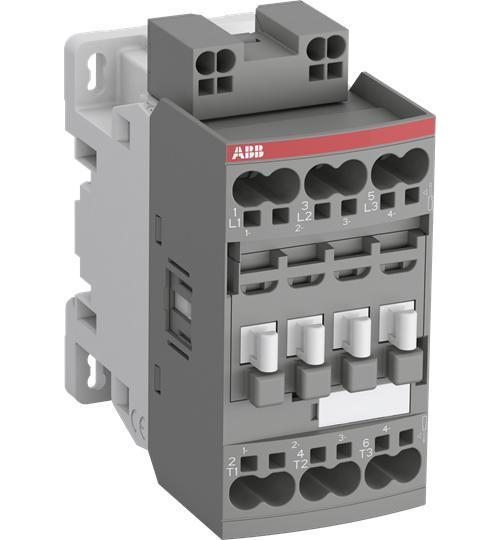

ABB AF26Z-30-00K-21 AF26 Auxiliary Block Contactor, 20 to 60 VAC/VDC V Coil, 3NO Contact, 3 Poles
Part Number # AF26Z-30-00K-21
SKU # 2430234
$207.04 / Each
Typical price:$247.45 / Each
ABB AF26Z-30-00K-21 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF26Z-30-00K-21 |
| SKU #: | 2430234 |
| Coil Power Rating: | 11 kW |
| Coil Voltage: | 20 to 60 V AC/DC, 20 to 60 VAC/VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 92.3 mm H x 45 mm W x 86 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO |
| Number of Poles: | 3 |
| Operating Temperature: | -40 to 70 deg C |
| Series: | AF26 |
| Size: | 1 in |
| Terminal Type: | Screw |
| Type: | Auxiliary Block |
| Connection type: | Push-In Spring |
| Country of origin: | FR |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523156418 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$207.04 / Each
Typical price:$247.45 / Each
Quantity:
- ABB, AF26Z-30-00K-21, Contactor, Auxiliary Block, Series: AF26, 20 to 60 V AC/DC Coil, 11 kW Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 1NO Auxiliary Contacts, Push-In Spring Connection, 1 in Size, Screw Terminal, IP20 Enclosure, -40 to 70 deg C Operating, DIN Rail Mounting, 92.3 mm H x 45 mm W x 86 mm D Dimensions
AF26Z-30-00K-21 Application
used for controlling power circuits up to 690 V AC and 220 V DCAF26Z-30-00K-21 Includes
Push-in Spring terminalsAF26Z-30-00K-21 Item Features
- They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads
- The contactors include an electronic coil interface accepting a wide control voltage Uc min to Uc max
- One coil can be used for different control voltages used worldwide without any coil change
- Only one push is all you need for extremely fast wiring, faster than ever installation, easier than ever wiring, reliable as ever connections
AF26Z-30-00K-21 Standards
IEC 60947-5-1|IEC 60947-4-1|SEMI F47-0706 compliance|PROP65SKU #2430234Part Number #AF26Z-30-00K-21UNSPSC39121529UPC03471523156418
