Part Number # AF26Z-40-00-30
SKU # 2426840
AF26Z-40-00-30

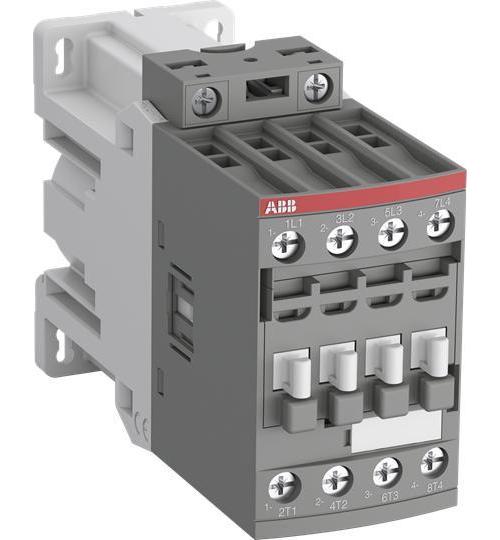

ABB AF26Z-40-00-30 AF26 Auxiliary Block Contactor, 3NO Contact, 4 Poles
Part Number # AF26Z-40-00-30
SKU # 2426840
$166.06 / Each
Typical price:$308.37 / Each
ABB AF26Z-40-00-30 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF26Z-40-00-30 |
| SKU #: | 2426840 |
| Coil Power Rating: | 11 kW |
| Contact Configuration: | 3NO |
| Dimensions: | 86 mm H x 45 mm W x 121 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 4 |
| Operating Temperature: | -40 to 70 deg C |
| Series: | AF26 |
| Terminal Type: | Screw |
| Type: | Auxiliary Block |
| Connection type: | Terminals |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523116092 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$166.06 / Each
Typical price:$308.37 / Each
Quantity:
- ABB, AF26Z-40-00-30, Contactor, Auxiliary Block, Series: AF26, 11 kW Coil, 4 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, Terminals Connection, Screw Terminal, IP20 Enclosure, -40 to 70 deg C Operating, DIN Rail Mounting, 86 mm H x 45 mm W x 121 mm D Dimensions
AF26Z-40-00-30 Application
used for controlling power circuits up to 690 V AC and 440 V DCAF26Z-40-00-30 Item Features
- Mainly used for controlling non-inductive or slightly inductive loads
- AF26Z contactors with coil 30 include a 24 V DC electronic coil interface with a built-in surge suppression, obtaining a reduced holding coil consumption up to 1.7 W for a low panel energy consumption and a direct control by PLC-output 250 mA 24 V DC, without need of additional interface relay
- AF... series 4-pole contactors are of the block type design
AF26Z-40-00-30 Standards
IEC 60947-5-1|IEC 60947-4-1|PROP65SKU #2426840Part Number #AF26Z-40-00-30UNSPSC39121529UPC03471523116092
Image provided may only be a representation of final product and may include optional equipment
