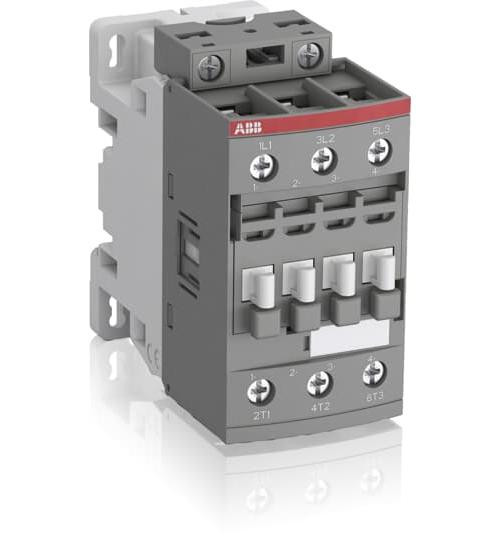

ABB AF30-30-00-14

Brand: ABB

Part Number: AF30-30-00-14

ABB IEC Contactor, Series: AF Series, 250/500 VAC/VDC Coil, 33 A Maximum Load Current, 20 hp Coil, 3 Pole, 50/60 Hz Frequency, 18.5 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, Screw Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -40 to 70 deg C Operating, DIN Rail Mounting, 1.75 in H x 3.35 in W x 3.35 in D Dimensions

Additional Description: ABB -AF30-30-00-14 AF30 3P CONTR, 250-500VAC/DC

Catalog Description: AF30 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC or DC operated - Accessories: a
