Part Number # AF305-30-11-14
SKU # 2403733
Image Disclaimers Message
AF305-30-11-14

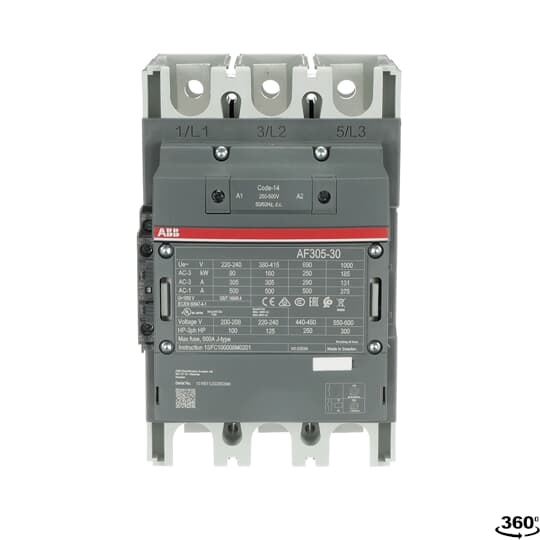

ABB AF305-30-11-14 Iec Contactor
Part Number # AF305-30-11-14
SKU # 2403733
ABB AF305-30-11-14 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF305-30-11-14 |
| SKU #: | 2403733 |
| Coil Power Rating: | 160 kW, 250 hp, 300 hp |
| Coil Voltage: | 250 to 500 VAC/VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 225 mm H x 140 mm W x 180 mm D |
| Enclosure Type: | IP00/IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 5000000 Cycles |
| Operating Temperature: | -25 to 50 deg C |
| Terminal Type: | Screw |
| Type: | 3-Phase AC/DC Operated |
| Country of origin: | SE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 07320500481806 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB AF305-30-11-14 Iec Contactor
Brand: ABB
Part Number: AF305-30-11-14
ABB Line Contactor, Non-Reversing, Series: AF Series, 250 to 500 VAC/VDC Coil, 400 A Maximum Load Current, 100 hp, 125 hp, 250 hp, 300 hp Coil, 3 Pole, 185/90/160/200/250 kW Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 500 A at 690 V Contact, AF305 Size, Screw Terminal, IP20/IP00 Enclosure, 5000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 140 mm W x 180 mm D x 225 mm H Dimensions
Additional Description: ABB -AF305-30-11-14 CTR,3P,312A,250-500VAC/DC,1/1
Catalog Description: A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V. Operated with wide control voltage range 250-500 V, 50/60 Hz and DC
AF305-30-11-14 Application
For controlling 3-phase motors and power circuits up to 1000VAC, motor starting, isolation, by-pass and distribution application up to maximum 1000 VAF305-30-11-14 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- These contactors are of the block type design with 3 main poles
- 160 kW at 3-phase 400 V IEC, 250 hp at 440 to 480 VAC, 300 hp at 550 to 600 VAC
- 312 A at 220 to 240 VAC 3-phase UL/CSA
AF305-30-11-14 Standards
RoHS Compliant|IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 60947-1|UL 60947-4-1A|CSA 60947-1|CSA 60947-4-1A|CB Certified|CE Certified|RINA ApprovedSKU #2403733Part Number #AF305-30-11-14UNSPSC39121529UPC07320500481806
