Part Number # AF305-30-11-34
SKU # 2455982
Image Disclaimers Message
AF305-30-11-34

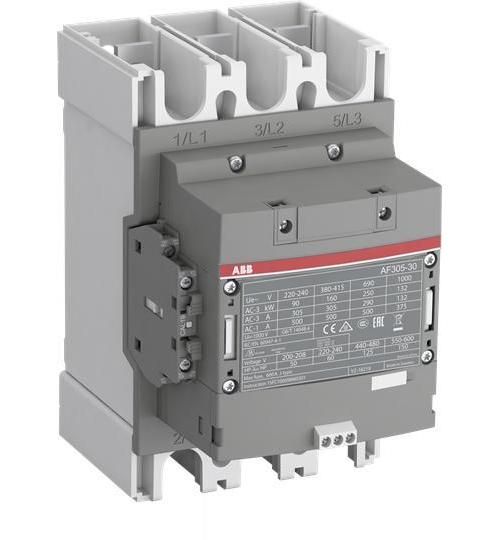

ABB AF305-30-11-34
Part Number # AF305-30-11-34
SKU # 2455982
$1463.33 / Each
Typical price:$2717.37 / Each
ABB AF305-30-11-34 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF305-30-11-34 |
| SKU #: | 2455982 |
| Coil Power Rating: | 160 kW, 250 hp, 300 hp |
| Coil Voltage: | 250 to 500 V AC/DC |
| Contact Configuration: | 3NO |
| Dimensions: | 225 mm H x 140 mm W x 195.5 mm D |
| Enclosure Type: | IP00/IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 5000000 Cycles |
| Operating Temperature: | -40 to 70 deg C |
| Terminal Type: | Screw |
| Type: | 3-Phase AC/DC Operated |
| Connection type: | Flat |
| Country of origin: | SE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 07320500504628 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1463.33 / Each
Typical price:$2717.37 / Each
Quantity:
- ABB, AF305-30-11-34, IEC Contactor, 3-Phase AC/DC Operated, 250 to 500 V AC/DC Coil, 312 A Maximum Load Current, 160 kW, 250 hp, 300 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, Flat Connection, Screw Terminal, IP00/IP20 Enclosure, 5000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 225 mm H x 140 mm W x 195.5 mm D Dimensions
AF305-30-11-34 Application
For controlling 3-phase motors and power circuits up to 1000 VAC and 340 VDC, for various applications such as motor starting, isolation, by-pass and distribution application up to maximum 1000 VAF305-30-11-34 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- Opening time below 20 ms
- 160 kW at 3-phase 400 V IEC, 250 hp at 440 to 480 VAC, 300 hp at 550 to 600 VAC
- 312 A at 220 to 240 VAC 3-phase UL/CSA
AF305-30-11-34 Standards
IEC 60947-4-1|CSA 60947-4-1ASKU #2455982Part Number #AF305-30-11-34UNSPSC39121529UPC07320500504628
