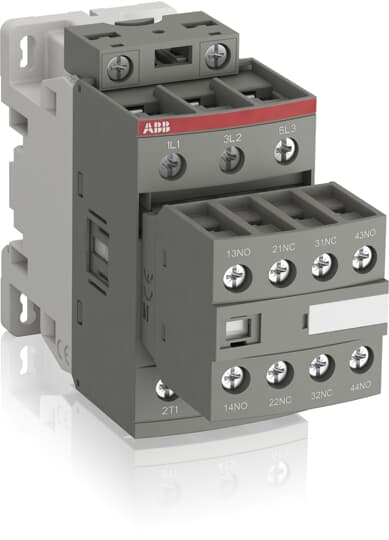

ABB AF30Z-30-22-21 Iec Contactor
Part Number # AF30Z-30-22-21
SKU # 2413288
ABB AF30Z-30-22-21 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF30Z-30-22-21 |
| SKU #: | 2413288 |
| Coil Power Rating: | 15 kW, 20 hp, 25 hp |
| Coil Voltage: | 24 to 60 VAC, 20 to 60 VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 86 mm H x 45 mm W x 119.5 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -40 to 70 deg C |
| Terminal Type: | Screw |
| Type: | AC/DC Operated Low Coil Consumption |
| Connection type: | Cable Clamp |
| Country of origin: | FR |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523114616 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB AF30Z-30-22-21 Iec Contactor
Brand: ABB
Part Number: AF30Z-30-22-21
ABB IEC Contactor, AC/DC Operated Low Coil Consumption, 24 to 60 VAC, 20 to 60 VDC Coil, 32.2 A Maximum Load Current, 15 kW, 20 hp, 25 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 2NO-2NC Auxiliary Contacts, Cable Clamp Connection, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 86 mm H x 45 mm W x 119.5 mm D Dimensions
Additional Description: ABB -AF30Z-30-22-21 CTR,3P,32.2A,L20-60VDC/24-60VAC,2/2
Catalog Description: AF30Z contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF..Z contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...250 V 50/60 Hz or 12...250 V DC. AF..Z contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF..Z contactors allow direct control by PLC-output ? 24 V DC 500 mA and obtain a reduced holding coil consumption. AF..Z contactors withstand short voltage dips and voltage sags (SEMI F47-0706 compliance) between 24...250 V 50/60 Hz AF..Z contactors have built-in surge protection and do not require additional surge suppressors The AF... series 2-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles with a non-r
AF30Z-30-22-21 Application
For controlling 3-phase motors and power circuits up to 690 VAC and 220 VDCAF30Z-30-22-21 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Allow direct control by PLC output >=24 VDC 500 mA
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- 15 kW at 3-phase 400 V IEC, 20 hp at 440 to 480 VAC, 25 hp at 550 to 600 VAC
- 32.2 A at 200 to 208 VAC 3-phase UL/CSA
AF30Z-30-22-21 Standards
IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 508|CSA 22.2 60947-4-1SKU #2413288Part Number #AF30Z-30-22-21UNSPSC39121529UPC03471523114616
