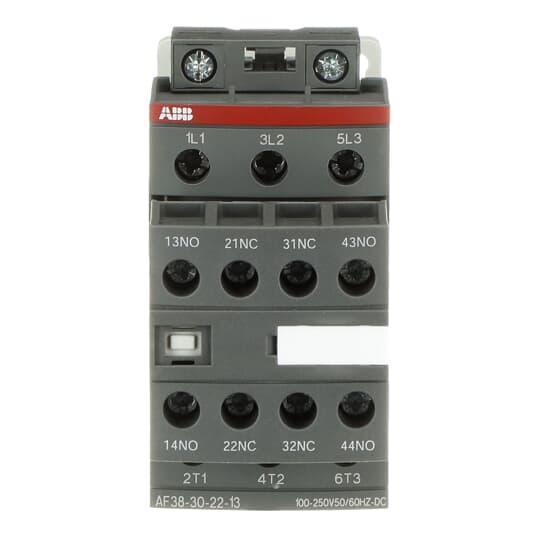

ABB AF38-30-22-13 Line Contactor
Part Number # AF38-30-22-13
SKU # 2366374
ABB AF38-30-22-13 Key Features
ABB AF38-30-22-13 Line Contactor
Brand: ABB
Part Number: AF38-30-22-13
ABB Line Contactor, Non-Reversing, Series: AF Series, 100 to 250 VAC/VDC Coil, 50 A Maximum Load Current, 10 hp, 25 hp, 30 hp, 2 hp, 5 hp Coil, 3 Pole, 11/18.5/22 kW Wattage, 3NO Contact Configuration, 2NO-2NC Auxiliary Contacts, 50 A at 690 V Contact, AF38 Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 45 mm W x 119.5 mm D x 86 mm H Dimensions
Additional Description: ABB -AF38-30-22-13 CTR,3P,32.2A,100-250VAC/DC,2/2
Catalog Description: AF38 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF... series 2-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles with a non-removable front-mounted 2 N.O. + 2 N.C. auxiliary contact block, side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 including the "Mechanically Linked" symbol on the c
AF38-30-22-13 Application
For controlling 3 ph motors, non-inductive or slightly inductive loadsAF38-30-22-13 Item Features
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
- 50 A at 690 V, 42 A at 690 V, 37 A at 690 V rated operational current AC-1
- 40 A at 220/230/240 V, 38 A at 380/400 V, 38 A at 415 V, 38 A at 440 V, 33 A at 500 V, 24 A at 690 V rated operational current AC-3
- 10 hp at 220 to 240 VAC 3 ph, 25 hp at 440 to 480 VAC 3 ph, 30 hp at 550 to 600 VAC 3 ph, 2 hp at 120 VAC 1 ph, 10 hp at 200 to 208 VAC 3 ph, 5 hp at 240 VAC 1 ph
- 11 kW at 220/230/240 V, 18.5 kW at 380/400 V, 18.5 kW at 415 V, 22 kW at 440 V, 22 kW at 500 V, 22 kW at 690 V, 18.5 kW at 400 V
AF38-30-22-13 Standards
BAA Compliant|BV Certified|CB Certified|CCC Certified|DNV GL Certified|LR Certified|RMRS CertifiedSKU #2366374Part Number #AF38-30-22-13UNSPSC39121529UPC03471523111738
