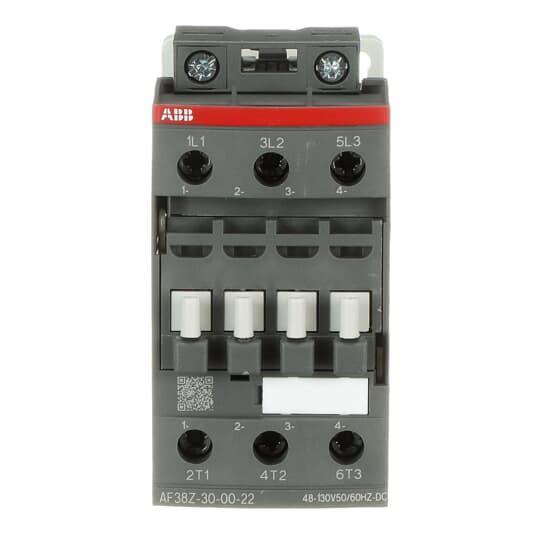

ABB AF38Z-30-00-22

Brand: ABB

Part Number: AF38Z-30-00-22

ABB IEC Contactor, AC/DC Operated Low Coil Consumption Non-Reversing, 48 to 130 VAC/VDC Coil, 34 A Maximum Load Current, 18.5 kW, 25 hp, 30 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, Cable Clamp Connection, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 86 mm H x 45 mm W x 86 mm D Dimensions

Additional Description: ABB -AF38Z-30-00-22 (N) AF38Z 3P CONTR, 48-138VAC/DC NON-CANCELABLE, NON-RETURNABLE

Catalog Description: AF38Z contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF..Z contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...250 V 50/60 Hz or 12...250 V DC. AF..Z contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF..Z contactors allow direct control by PLC-output ? 24 V DC 500 mA and obtain a reduced holding coil consumption. AF..Z contactors withstand short voltage dips and voltage sags (SEMI F47-0706 compliance) between 24...250 V 50/60 Hz AF..Z contactors have built-in surge protection and do not require additional surge suppressors The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, front and s
