Part Number # AF38Z-30-11-21
SKU # 2417238
Image Disclaimers Message
AF38Z-30-11-21

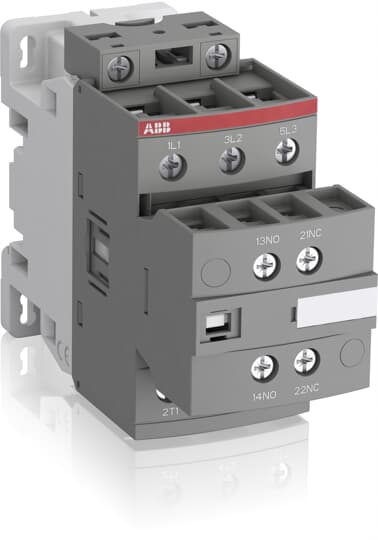

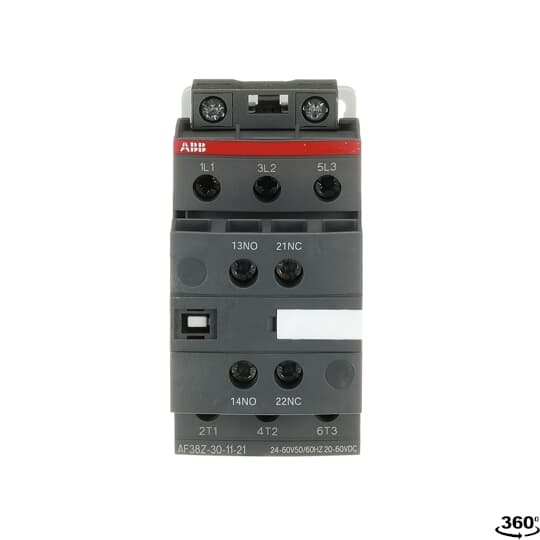

ABB AF38Z-30-11-21 AF Auxiliary Block Contactor, 20 to 60 VAC/VDC V Coil, 50 A, 3NO Contact, 3 Poles
Part Number # AF38Z-30-11-21
SKU # 2417238
$213.90 / Each
Typical price:$397.19 / Each
ABB AF38Z-30-11-21 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF38Z-30-11-21 |
| SKU #: | 2417238 |
| Coil Voltage: | 20 to 60 V AC/DC, 20 to 60 VAC/VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 86 mm H x 45 mm W x 111.5 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Temperature: | -60 to 80 deg C |
| Series: | AF |
| Terminal Type: | Screw |
| Type: | Auxiliary Block |
| Connection type: | Screw Terminals |
| Country of origin: | FR |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523114814 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$213.90 / Each
Typical price:$397.19 / Each
Quantity:
- ABB, AF38Z-30-11-21, Contactor, Auxiliary Block, Series: AF, 20 to 60 V AC/DC Coil, 50 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, Screw Terminals Connection, IP20 Enclosure, -60 to 80 deg C Operating, DIN Rail Mounting, 86 mm H x 45 mm W x 111.5 mm D Dimensions
AF38Z-30-11-21 Application
used for controlling power circuits up to 690 V AC and 220 V DCAF38Z-30-11-21 Item Features
- They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads
- The contactors include an electronic coil interface accepting a wide control voltage Uc min to Uc max
- One coil can be used for different control voltages used worldwide without any coil change
AF38Z-30-11-21 Standards
IEC 60947-5-1|IEC 60947-4-1|SEMI F47-0706 compliance|PROP65SKU #2417238Part Number #AF38Z-30-11-21UNSPSC39121529UPC03471523114814
