AF40-22-00-12
ABB AF40-22-00-12
Part Number # AF40-22-00-12
SKU # 2439182
ABB AF40-22-00-12 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF40-22-00-12 |
| SKU #: | 2439182 |
| UNSPSC: | 39121529 |
| UPC: | 03471523133822 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB AF40-22-00-12
Brand: ABB
Part Number: AF40-22-00-12
ABB IEC Contactor, AC/DC Operated, 48 to 130 VAC/VDC Coil, 60/70 A Maximum Load Current, 11/18.5/22 kW Coil, 4 Pole, 50/60 Hz Frequency, 2NO-2NC Contact Configuration, Double Connector Connection, Screw Terminal, IP10/IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 125.5 mm H x 70 mm W x 113.5 mm D Dimensions
Additional Description: ABB -AF40-22-00-12 (N) CONTACTOR 2NO-2NC POLE 60A 600VAC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: AF40 4-pole contactors are used for controlling power circuits up to 690 V AC and 440 V DC. They are mainly used for controlling non-inductive or slightly inductive loads (i.e. resistance furnaces...). AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF... series 4-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 2 N.O. + 2 N.C. main poles, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC or D
AF40-22-00-12 Application
For controlling non-inductive or slightly inductive loads (resistance furnaces) and generally for controlling power circuits up to 690 VAC and 440 VDCAF40-22-00-12 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- 11 kW at 220 to 230 to 240 V, 18.5 kW 380 to 400 V, 22 kW at 415/440/500/690 V
- 60 A at 600 VAC UL/CSA, 70 A at 1-phase 690 V IEC
AF40-22-00-12 Standards
IEC 60947-4-1|CSA C22.2 File No. 60947-4-1SKU #2439182Part Number #AF40-22-00-12UNSPSC39121529UPC03471523133822

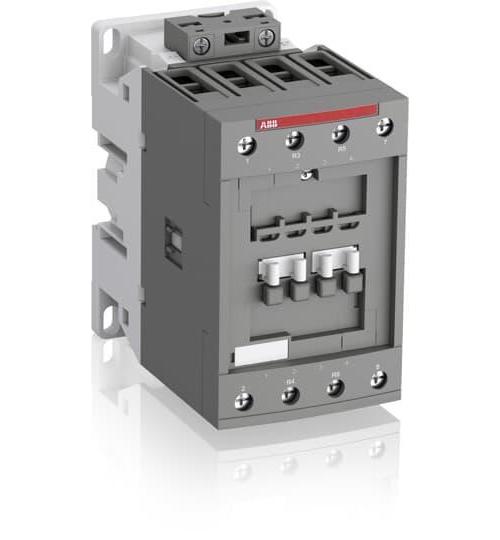

Image provided may only be a representation of final product and may include optional equipment
