Part Number # AF40-22-00-13
SKU # 2424541
Brand: ABB
AF40-22-00-13

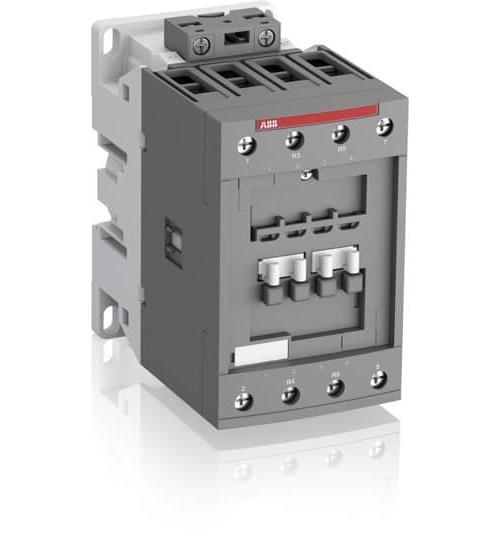

ABB AF40-22-00-13 AC/DC Operated IEC Contactor
Part Number # AF40-22-00-13
SKU # 2424541
$398.97 / Each
Typical price:$449.64 / Each
ABB AF40-22-00-13 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF40-22-00-13 |
| SKU #: | 2424541 |
| Coil Power Rating: | 11/18.5/22 kW |
| Coil Voltage: | 100 to 250 V AC/DC, 100 to 250 VAC/VDC |
| Dimensions: | 125.5 mm H x 70 mm W x 113.5 mm D |
| Enclosure Type: | IP10/IP20 |
| Type: | AC/DC Operated |
| Connection type: | Double Connector |
| UNSPSC: | 39121529 |
| UPC: | 03471523133839 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$398.97 / Each
Typical price:$449.64 / Each
Quantity:
- ABB, AF40-22-00-13, IEC Contactor, AC/DC Operated, 100 to 250 V AC/DC Coil, 60/70 A Maximum Load Current, 11/18.5/22 kW Coil, 4 Pole, 50/60 Hz Frequency, 2NO-2NC Contact Configuration, Double Connector Connection, Screw Terminal, IP10/IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 125.5 mm H x 70 mm W x 113.5 mm D Dimensions
AF40-22-00-13 Application
For controlling non-inductive or slightly inductive loads (resistance furnaces) and generally for controlling power circuits up to 690 VAC and 440 VDCAF40-22-00-13 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- 11 kW at 220 to 230 to 240 V, 18.5 kW 380 to 400 V, 22 kW at 415/440/500/690 V
- 60 A at 600 VAC UL/CSA, 70 A at 1-phase 690 V IEC
AF40-22-00-13 Standards
IEC 60947-4-1|CSA C22.2 File No. 60947-4-1SKU #2424541Part Number #AF40-22-00-13UNSPSC39121529UPC03471523133839
Image provided may only be a representation of final product and may include optional equipment
