Part Number # AF40-30-00-14
SKU # 2407597
AF40-30-00-14
ABB AF40-30-00-14 Iec Contactor
Part Number # AF40-30-00-14
SKU # 2407597
ABB AF40-30-00-14 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF40-30-00-14 |
| SKU #: | 2407597 |
| Coil Power Rating: | 18.5 kW, 30 hp, 40 hp |
| Coil Voltage: | 250 to 500 V AC/DC, 250 to 500 VAC/VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 125.5 mm H x 55 mm W x 111 mm D |
| Enclosure Type: | IP10/IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -60 to 80 deg C |
| Terminal Type: | Screw |
| Type: | AC/DC Operated |
| Connection type: | Double Connector |
| Country of origin: | FR |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523132047 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB AF40-30-00-14 Iec Contactor
Brand: ABB
Part Number: AF40-30-00-14
ABB Line Contactor, Non-Reversing, Series: AF Series, 250 to 500 VAC/VDC Coil, 60 A Maximum Load Current, 15 hp, 30 hp, 40 hp, 3 hp, 10 hp, 7-1/2 hp Coil, 3 Pole, 11/18.5/22 kW Wattage, 3NO Contact Configuration, 70 A at 690 V Contact, AF40 Size, Screw Terminal, IP10/IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 55 mm W x 111 mm D x 125.5 mm H Dimensions
Additional Description: ABB -AF40-30-00-14 CTR,3P,42A,250-500VAC/DC
Catalog Description: AF40 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC or DC operated - Accessories: a
AF40-30-00-14 Application
For controlling 3-phase motors, power circuits up to 690VAC and 220VDC, non-inductive or slightly inductive loadsAF40-30-00-14 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- 18.5 kW at 3-phase 400 V IEC, 30 hp at 440 to 480 VAC, 40 hp at 550 to 600 VAC
- 42 A at 220 to 240 VAC 3-phase UL/CSA
AF40-30-00-14 Standards
RoHS Compliant|IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 60947-4-1|CSA 22.2 60947-4-1|cUL Listed|EAC ApprovedSKU #2407597Part Number #AF40-30-00-14UNSPSC39121529UPC03471523132047

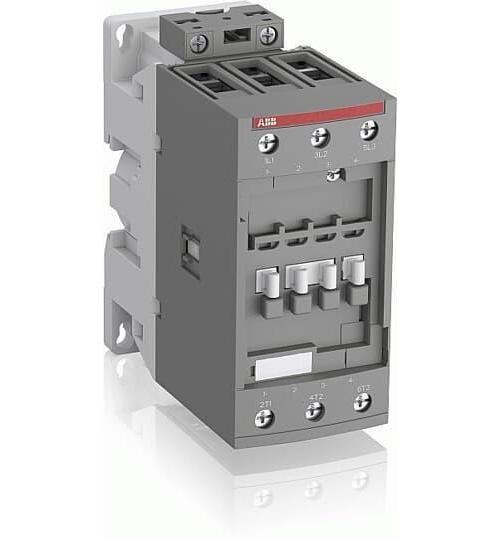

Image provided may only be a representation of final product and may include optional equipment
