Part Number # AF40-30-22-13
SKU # 2366386
Image Disclaimers Message
AF40-30-22-13

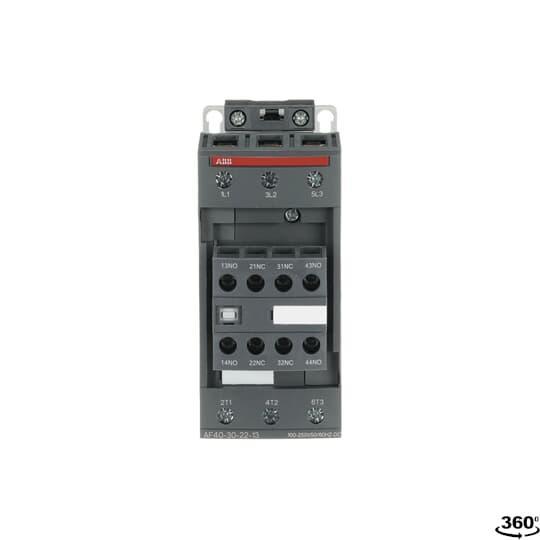

ABB AF40-30-22-13 Line Contactor
Part Number # AF40-30-22-13
SKU # 2366386
ABB AF40-30-22-13 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF40-30-22-13 |
| SKU #: | 2366386 |
| Coil Power Rating: | 15 hp, 30 hp, 40 hp, 3 hp, 10 hp, 7-1/2 hp |
| Coil Voltage: | 100 to 250, 100 to 250 VAC/VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 70 A at 690 V |
| Dimensions: | 55 mm W x 144 mm D x 125.5 mm H |
| Enclosure Type: | IP10/IP20 |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -40 to 70, -40 to 70 deg C |
| Series: | AF Series |
| Size: | AF40 |
| Terminal Type: | Screw |
| Type: | Non-Reversing |
| Wattage: | 11/18.5/22, 11/18.5/22 kW |
| Country of origin: | FR |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523132238 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB AF40-30-22-13 Line Contactor
Brand: ABB
Part Number: AF40-30-22-13
ABB Line Contactor, Non-Reversing, Series: AF Series, 100 to 250 VAC/VDC Coil, 60 A Maximum Load Current, 15 hp, 30 hp, 40 hp, 3 hp, 10 hp, 7-1/2 hp Coil, 3 Pole, 11/18.5/22 kW Wattage, 3NO Contact Configuration, 2NO-2NC Auxiliary Contacts, 70 A at 690 V Contact, AF40 Size, Screw Terminal, IP10/IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 55 mm W x 144 mm D x 125.5 mm H Dimensions
Additional Description: ABB -AF40-30-22-13 CTR,3P,42A,100-250VAC/DC,2/2
Catalog Description: AF40 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF... series 2-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles with a non-removable front-mounted 2 N.O. + 2 N.C. auxiliary contact block, side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 including the "Mechanically Linked" symbol on the c
AF40-30-22-13 Application
For controlling 3 ph motors, non-inductive or slightly inductive loadsAF40-30-22-13 Item Features
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
- 70 A at 690 V, 60 A at 690 V, 50 A at 690 V rated operational current AC-1
- 40 A at 220/230/240 V, 40 A at 380/400 V, 40 A at 415 V, 40 A at 440 V, 35 A at 500 V, 25 A at 690 V rated operational current AC-3
- 15 hp at 220 to 240 VAC 3 ph, 30 hp at 440 to 480 VAC 3 ph, 40 hp at 550 to 600 VAC 3 ph, 3 hp at 120 VAC 1 ph, 10 hp at 200 to 208 VAC 3 ph, 7-1/2 hp at 240 VAC 1 ph
- 11 kW at 220/230/240 V, 18.5 kW at 380/400 V, 22 kW at 415 V, 22 kW at 440 V, 22 kW at 500 V, 22 kW at 690 V, 18.5 kW at 400 V
AF40-30-22-13 Standards
BAA Compliant|BV Certified|CB Certified|CCC Certified|DNV GL Certified|LR Certified|RMRS CertifiedSKU #2366386Part Number #AF40-30-22-13UNSPSC39121529UPC03471523132238
