Brand: ABB
AF40-40-00-13

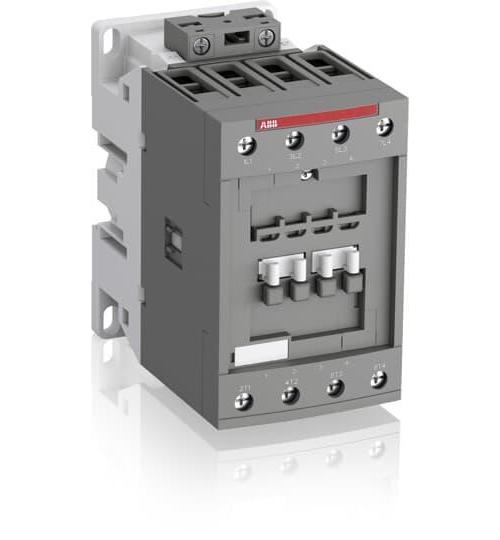

ABB AF40-40-00-13 AF Series AC/DC Operated IEC Contactor
Part Number # AF40-40-00-13
SKU # 2403384
$334.43 / Each
Typical price:$388.21 / Each
ABB AF40-40-00-13 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF40-40-00-13 |
| SKU #: | 2403384 |
| Coil Power Rating: | 11/18.5/22 kW, 15 hp, 30 hp, 40 hp, 3 hp, 10 hp, 7-1/2 hp, 30 kW |
| Coil Voltage: | 100 to 250 V AC/DC, 100 to 250 VAC/VDC, 240 VDC |
| Contact Configuration: | 4NO |
| Contact Rating: | 70 A at 690 V |
| Dimensions: | 119 mm L x 104 mm W x 110 mm H, 125.5 mm H x 70 mm W x 113.5 mm D, 70 mm W x 113.5 mm D x 125.5 mm H |
| Enclosure Type: | IP10/IP20, IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 4 |
| Operating Cycles: | 10000000 Cycles, 300 Cycles |
| Operating Temperature: | -40 to 70 deg C |
| Series: | AE Series, AF Series |
| Size: | AF40 |
| Terminal Type: | Screw |
| Type: | AC/DC Operated, DC Operated Non-Reversing, Non-Reversing |
| Wattage: | 11/18.5/22 kW |
| Connection type: | Double Connector |
| Country of origin: | MX |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523133532 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$334.43 / Each
Typical price:$388.21 / Each
Quantity:
- ABB, AF40-40-00-13, IEC Contactor, AC/DC Operated, Series: AF Series, 100 to 250 V AC/DC Coil, 60/70 A Maximum Load Current, 11/18.5/22 kW Coil, 4 Pole, 50/60 Hz Frequency, 11/18.5/22 kW Wattage, 4NO Contact Configuration, 70 A at 690 V Contact, Double Connector Connection, AF40 Size, Screw Terminal, IP10/IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 125.5 mm H x 70 mm W x 113.5 mm D Dimensions
AF40-40-00-13 Application
For controlling non-inductive or slightly inductive loads (resistance furnaces) and generally for controlling power circuits up to 690 VAC and 440 VDCAF40-40-00-13 Item Features
- Can withstand short voltage dips and voltage sags
- 60 A at 600 VAC UL/CSA, 70 A at 1-phase 690 V IEC
- No auxiliary contacts
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
- 70 A at 690 V, 60 A at 690 V, 50 A at 690 V rated operational current AC-1
- 40 A at 220/230/240 V, 40 A at 380/400 V, 40 A at 415 V, 40 A at 440 V, 35 A at 500 V, 25 A at 690 V rated operational current AC-3
- 15 hp at 220 to 240 VAC 3 ph, 30 hp at 440 to 480 VAC 3 ph, 40 hp at 550 to 600 VAC 3 ph, 3 hp at 120 VAC 1 ph, 10 hp at 200 to 208 VAC 3 ph, 7-1/2 hp at 240 VAC 1 ph
AF40-40-00-13 Standards
IEC 60947-4-1|EN 60947-1|CSA C22.2 File No. 60947-4-1|CSA Certified|EAC Approved|GOST Certified|UL File No. E312527SKU #2403384Part Number #AF40-40-00-13UNSPSC39121529UPC03471523133532
