Part Number # AF400-30-11-68
SKU # 1109566
Image Disclaimers Message
Brand: ABB
AF400-30-11-68

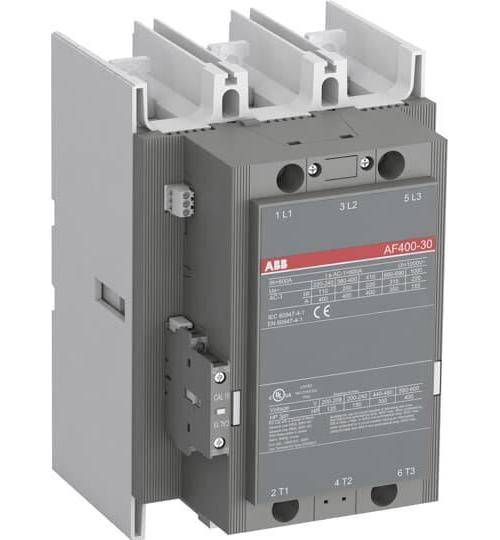

ABB AF400-30-11-68 Line Contactor
Part Number # AF400-30-11-68
SKU # 1109566
$2632.43 / Each
Typical price:$4888.40 / Each
ABB AF400-30-11-68 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF400-30-11-68 |
| SKU #: | 1109566 |
| Coil Power Rating: | 125 hp, 150 hp, 350 hp, 400 hp |
| Coil Voltage: | 24 to 60, 24 to 60 V DC, 24 to 60 VDC |
| Contact Configuration: | 1NC-1NO, 1NO-1NC, 3NO |
| Contact Rating: | 600 A at 1000 V, NEMA A600/P600 |
| Dimensions: | 10.94 in H x 7.32 in W x 8.5 in D, 7.32 in W x 8.5 in D x 10.94 in H |
| Enclosure Type: | IP20, IP20/IP00 |
| Frequency Rating: | 40 to 60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC, 2 |
| Number of Poles: | 3 |
| Operating Cycles: | 5000000, 5000000 Cycles |
| Operating Temperature: | -40 to 70, 40 deg C |
| Series: | AF Series |
| Size: | AF400 |
| Terminal Type: | Screw |
| Type: | 3-Phase Non-Reversing, Non-Reversing |
| Wattage: | 110/200/220/250/315 kW, 220/110/200/250/315 |
| Connection type: | Flat |
| Country of origin: | SE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 07320500217825 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2632.43 / Each
Typical price:$4888.40 / Each
Quantity:
- ABB, AF400-30-11-68, A-Line Contactor, 3-Phase Non-Reversing, Series: AF Series, 24 to 60 V DC Coil, 414 A Maximum Load Current, 125 hp, 150 hp, 350 hp, 400 hp Coil, 3 Pole, 40 to 60 Hz Frequency, 110/200/220/250/315 kW Wattage, 1NO-1NC Contact Configuration, 2 Auxiliary Contacts, NEMA A600/P600 Contact, Flat Connection, AF400 Size, Screw Terminal, IP20 Enclosure, 5000000 Cycles Operating Cycles, 40 deg C Operating, 10.94 in H x 7.32 in W x 8.5 in D Dimensions
AF400-30-11-68 Application
For controlling 3-phase motors and power circuitAF400-30-11-68 Item Features
- 125 hp at 200 VAC 3 ph, 125 hp at 208 VAC 3 ph, 150 hp at 220 to 240 VAC 3 ph, 350 hp at 440 to 480 VAC 3 ph, 400 hp at 550 to 600 VAC 3 ph
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 coils to cover control voltages between 48 to 500 V 50/60 Hz and 24 to 500 VDC
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- 600 A at 1000 V, 500 A at 1000 V, 400 A at 1000 V, 600 A at 690 V, 500 A at 690 V, 400 A at 690 V rated operational current AC-1
- 155 A at 1000 V, 400 A at 220/230/240 V, 400 A at 380/400 V, 400 A at 415 V, 400 A at 440 V, 400 A at 500 V, 350 A at 690 V rated operational current AC-3
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltages sags
- Built-in surge suppression
- Compact, space saving design
- 382 A at 550 to 600 VAC 3-phase UL/CSA
AF400-30-11-68 Standards
UL File No. 508, E36588|CSA C22.2 File No. 14, LR19700|EN 50005, 50012|VDE 0106 Part 100|CE Certified|IEC 60947-1|UL 60947-1|CSA 22.2 60947-1|CSA 60947-4-1|IEC RatedSKU #1109566Part Number #AF400-30-11-68UNSPSC39121529UPC07320500217825
