Part Number # AF460-30-22-69
SKU # 2297420
Image Disclaimers Message
AF460-30-22-69

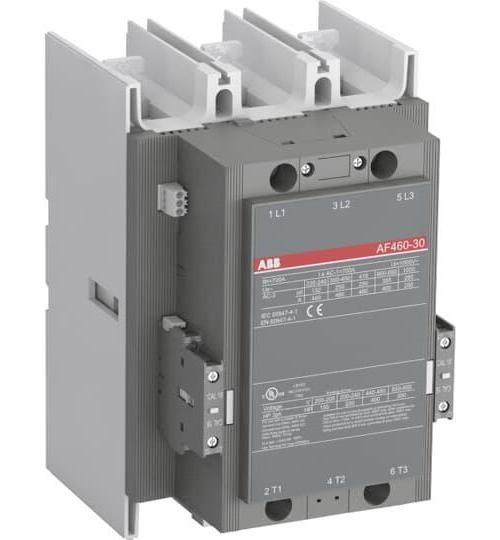

ABB AF460-30-22-69 AF Series Non-Reversing Line Contactor
Part Number # AF460-30-22-69
SKU # 2297420
$3046.79 / Each
Typical price:$5657.85 / Each
ABB AF460-30-22-69 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF460-30-22-69 |
| SKU #: | 2297420 |
| Coil Power Rating: | 150 hp, 200 hp, 400 hp, 500 hp |
| Coil Voltage: | 48 to 130, 48 to 130 V AC/DC, 48 to 130 VAC/VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 700 A at 1000 V |
| Dimensions: | 186 mm W x 216 mm D x 278 mm H |
| Enclosure Type: | IP00/IP20, IP20/IP00 |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 5000000, 5000000 Cycles |
| Operating Temperature: | -40 to 70, -40 to 70 deg C |
| Series: | AF Series |
| Size: | AF460 |
| Terminal Type: | Screw |
| Type: | Non-Reversing |
| Wattage: | 280/132/250/315/355, 280/132/250/315/355 kW |
| Country of origin: | SE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 00662019418285 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3046.79 / Each
Typical price:$5657.85 / Each
Quantity:
- ABB Line Contactor, Non-Reversing, Series: AF Series, 48 to 130 V AC/DC Coil, 650 A Maximum Load Current, 150 hp, 200 hp, 400 hp, 500 hp Coil, 3 Pole, 280/132/250/315/355 kW Wattage, 3NO Contact Configuration, 2NO-2NC Auxiliary Contacts, 700 A at 1000 V Contact, AF460 Size, Screw Terminal, IP00/IP20 Enclosure, 5000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 186 mm W x 216 mm D x 278 mm H Dimensions
AF460-30-22-69 Specifications
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 coils to cover control voltages between 48 to 500 V 50/60 Hz and 24 to 500 VDC
- 150 hp at 200 VAC 3 ph, 150 hp at 208 VAC 3 ph, 200 hp at 220 to 240 VAC 3 ph, 400 hp at 440 to 480 VAC 3 ph, 500 hp at 550 to 600 VAC 3 ph
- 280 kW at 1000 V, 132 kW at 220/230/240 V, 250 kW at 380/400 V, 250 kW at 415 V, 250 kW at 440 V, 315 kW at 500 V, 355 kW at 690 V
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- 700 A at 1000 V, 600 A at 1000 V, 480 A at 1000 V, 700 A at 690 V, 600 A at 690 V, 480 A at 690 V rated operational current AC-1
- 200 A at 1000 V, 460 A at 220/230/240 V, 460 A at 380/400 V, 460 A at 415 V, 460 A at 440 V, 460 A at 500 V, 400 A at 690 V rated operational current AC-3
AF460-30-22-69 Application
For various applications such as motor starting, isolation, by-pass and distribution application up to max 1000 VAF460-30-22-69 Item Features
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 coils to cover control voltages between 48 to 500 V 50/60 Hz and 24 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- 700 A at 1000 V, 600 A at 1000 V, 480 A at 1000 V, 700 A at 690 V, 600 A at 690 V, 480 A at 690 V rated operational current AC-1
- 200 A at 1000 V, 460 A at 220/230/240 V, 460 A at 380/400 V, 460 A at 415 V, 460 A at 440 V, 460 A at 500 V, 400 A at 690 V rated operational current AC-3
- 150 hp at 200 VAC 3 ph, 150 hp at 208 VAC 3 ph, 200 hp at 220 to 240 VAC 3 ph, 400 hp at 440 to 480 VAC 3 ph, 500 hp at 550 to 600 VAC 3 ph
- 280 kW at 1000 V, 132 kW at 220/230/240 V, 250 kW at 380/400 V, 250 kW at 415 V, 250 kW at 440 V, 315 kW at 500 V, 355 kW at 690 V
AF460-30-22-69 Standards
BAA Compliant|BV Certified|CB Certified|CCC Certified|CSA Certified|DNV GL Certified|LOVAG Certified|LR Certified|RMRS CertifiedSKU #2297420Part Number #AF460-30-22-69UNSPSC39121529UPC00662019418285
