Part Number # AF460N6-30-11-70
SKU # 1029009
Image Disclaimers Message
AF460N6-30-11-70

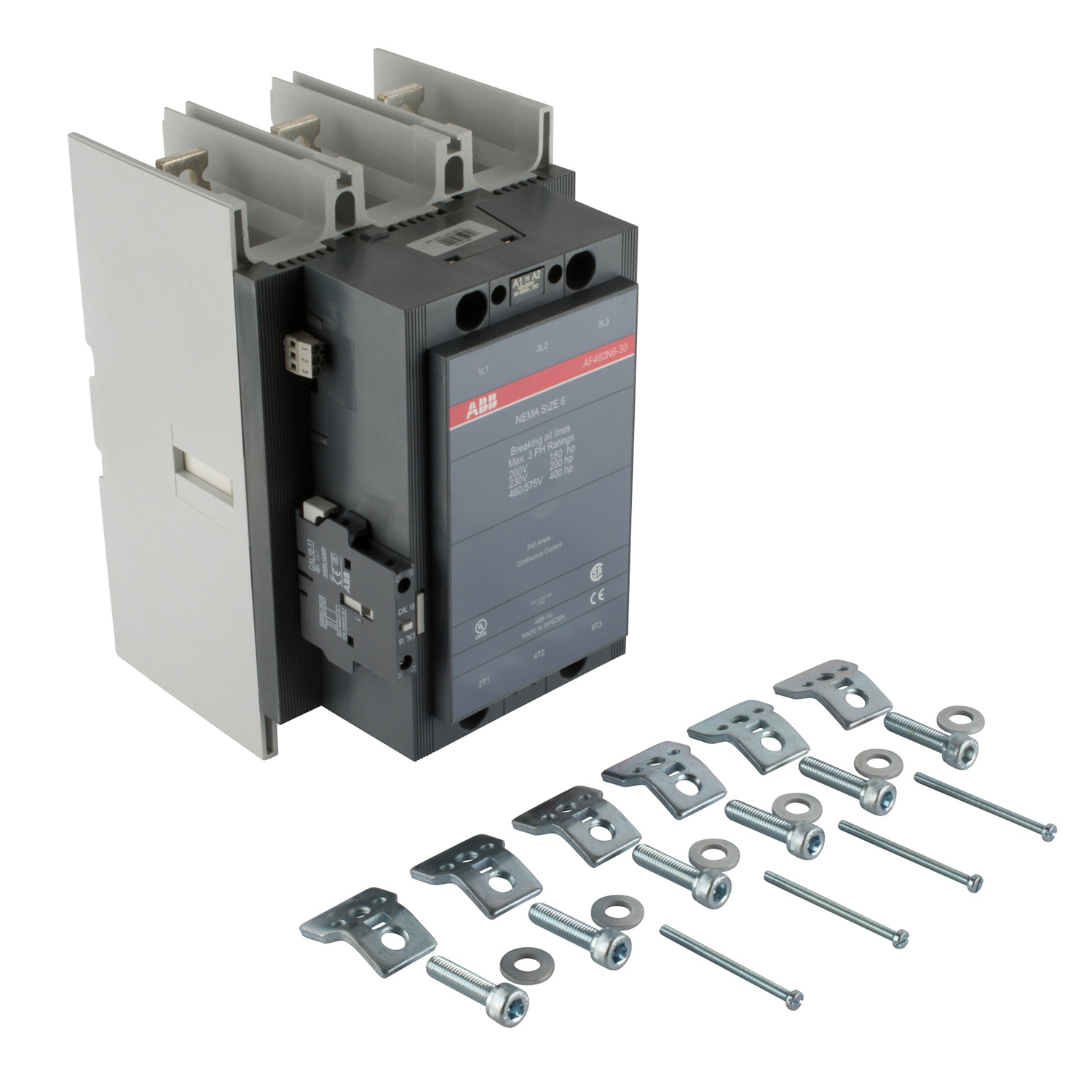

ABB AF460N6-30-11-70 Line Contactor
Part Number # AF460N6-30-11-70
SKU # 1029009
$3909.55 / Each
Typical price:$6651.61 / Each
ABB AF460N6-30-11-70 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF460N6-30-11-70 |
| SKU #: | 1029009 |
| Coil Power Rating: | 150 hp, 200 hp, 400 hp, 500 hp |
| Coil Voltage: | 100 to 250 V AC/DC, 100 to 250 VAC/VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 7.32 in W x 8.5 in D x 10.94 in H |
| Enclosure Type: | NEMA 6 |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3000000 cycles |
| Operating Temperature: | -40 to 70 deg C |
| Series: | AF Series |
| Size: | AF460 |
| Terminal Type: | Box Lug |
| Type: | Non-Reversing |
| Wattage: | 280/132/250/315/355 kW |
| Country of origin: | SE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 00662019876238 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3909.55 / Each
Typical price:$6651.61 / Each
Quantity:
- ABB Line Contactor, Non-Reversing, Series: AF Series, 100 to 250 V AC/DC Coil, 540 A Maximum Load Current, 150 hp, 200 hp, 400 hp, 500 hp Coil, 3 Pole, 280/132/250/315/355 kW Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, AF460 Size, Box Lug Terminal, NEMA 6 Enclosure, 3000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 7.32 in W x 8.5 in D x 10.94 in H Dimensions
AF460N6-30-11-70 Specifications
- Compact, space saving design
- 280 kW at 1000 V, 132 kW at 220/230/240 V, 250 kW at 380/400 V, 250 kW at 415 V, 250 kW at 440 V, 315 kW at 500 V, 355 kW at 690 V
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 coils to cover control voltages between 48 to 500 V 50/60 Hz and 24 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- 150 hp at 200 VAC 3 ph, 150 hp at 208 VAC 3 ph, 200 hp at 220 to 240 VAC 3 ph, 400 hp at 440 to 480 VAC 3 ph, 500 hp at 550 to 600 VAC 3 ph
AF460N6-30-11-70 Application
For controlling single and 3 ph motors and switching power circuitsAF460N6-30-11-70 Item Features
- Compact, space saving design
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 coils to cover control voltages between 48 to 500 V 50/60 Hz and 24 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- 150 hp at 200 VAC 3 ph, 150 hp at 208 VAC 3 ph, 200 hp at 220 to 240 VAC 3 ph, 400 hp at 440 to 480 VAC 3 ph, 500 hp at 550 to 600 VAC 3 ph
- 280 kW at 1000 V, 132 kW at 220/230/240 V, 250 kW at 380/400 V, 250 kW at 415 V, 250 kW at 440 V, 315 kW at 500 V, 355 kW at 690 V
AF460N6-30-11-70 Standards
BAA Compliant|CSA Certified|IEC Certified|UL ListedSKU #1029009Part Number #AF460N6-30-11-70UNSPSC39121529UPC00662019876238
