Brand: ABB
ABB AF52-30-00-14
Part Number # AF52-30-00-14
SKU # 2463117
Brand: ABB
AF52-30-00-14
ABB AF52-30-00-14
Part Number # AF52-30-00-14
SKU # 2463117
$190.03 / Each
Typical price:$320.23 / Each
ABB AF52-30-00-14 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF52-30-00-14 |
| SKU #: | 2463117 |
| Coil Power Rating: | 22 kW, 40 hp, 50 hp |
| Coil Voltage: | 250 to 500 V AC/DC |
| Dimensions: | 125.5 mm H x 55 mm W x 111 mm D |
| Enclosure Type: | IP10/IP20 |
| Operating Temperature: | -60 to 80 deg C |
| Type: | AC/DC Operated |
| Connection type: | Double Connector |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523132344 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$190.03 / Each
Typical price:$320.23 / Each
Quantity:
- ABB IEC Contactor, AC/DC Operated, 250 to 500 V AC/DC Coil, 54 A Maximum Load Current, 22 kW, 40 hp, 50 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, Double Connector Connection, Screw Terminal, IP10/IP20 Enclosure, 10000000 Cycles Operating Cycles, -60 to 80 deg C Operating, 125.5 mm H x 55 mm W x 111 mm D Dimensions
AF52-30-00-14 Application
For controlling 3-phase motors, power circuits up to 690VAC and 220VDC, non-inductive or slightly inductive loadsAF52-30-00-14 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- 22 kW at 3-phase 400 V IEC, 40 hp at 440 to 480 VAC, 50 hp at 550 to 600 VAC
- 54 A at 220 to 240 VAC 3-phase UL/CSA
AF52-30-00-14 Standards
RoHS Compliant|IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 60947-4-1|CSA 22.2 60947-4-1|cUL Listed|EAC ApprovedSKU #2463117Part Number #AF52-30-00-14UNSPSC39121529UPC03471523132344

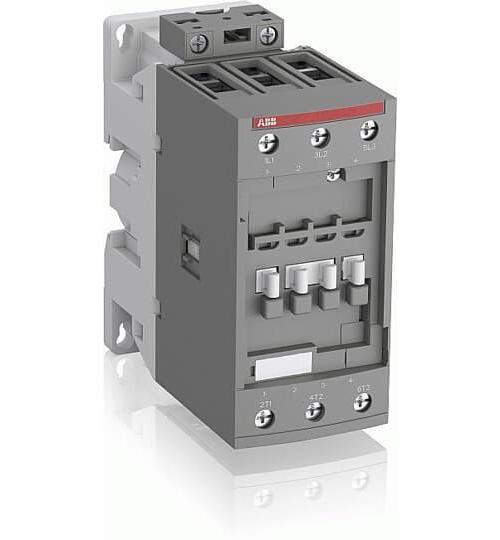

Image provided may only be a representation of final product and may include optional equipment
