Part Number # AF52-30-11-13
SKU # 2277395
Image Disclaimers Message
AF52-30-11-13

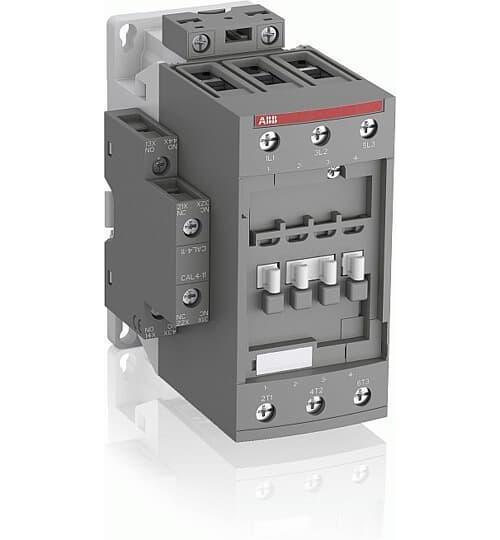

ABB AF52-30-11-13 Line Contactor
Part Number # AF52-30-11-13
SKU # 2277395
$193.55 / Each
Typical price:$359.43 / Each
ABB AF52-30-11-13 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF52-30-11-13 |
| SKU #: | 2277395 |
| Coil Power Rating: | 20 hp, 40 hp, 50 hp, 3 hp, 15 hp, 10 hp |
| Coil Voltage: | 100 to 250, 100 to 250 VAC/VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 100 A at 690 V |
| Dimensions: | 2.17 in W x 4.37 in D x 4.7 in H |
| Enclosure Type: | IP10/IP20 |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -40 to 70, -40 to 70 deg C |
| Series: | AF Series |
| Size: | AF52 |
| Terminal Type: | Screw |
| Type: | Non-Reversing |
| Wattage: | 15/22/30, 15/22/30 kW |
| Country of origin: | FR |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523132436 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$193.55 / Each
Typical price:$359.43 / Each
Quantity:
- ABB Line Contactor, Non-Reversing, Series: AF Series, 100 to 250 VAC/VDC Coil, 80 A Maximum Load Current, 20 hp, 40 hp, 50 hp, 3 hp, 15 hp, 10 hp Coil, 3 Pole, 15/22/30 kW Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 100 A at 690 V Contact, AF52 Size, Screw Terminal, IP10/IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 2.17 in W x 4.37 in D x 4.7 in H Dimensions
AF52-30-11-13 Application
For controlling single and 3 ph motors and switching power circuitsAF52-30-11-13 Item Features
- Compact, space saving design
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
- 100 A at 690 V, 80 A at 690 V, 70 A at 690 V rated operational current AC-1
- 53 A at 220/230/240 V, 53 A at 380/400 V, 53 A at 415 V, 53 A at 440 V, 45 A at 500 V, 35 A at 690 V rated operational current AC-3
- 20 hp at 220 to 240 VAC 3 ph, 40 hp at 440 to 480 VAC 3 ph, 50 hp at 550 to 600 VAC 3 ph, 3 hp at 120 VAC 1 ph, 15 hp at 200 to 208 VAC 3 ph, 10 hp at 240 VAC 1 ph
- 15 kW at 220/230/240 V, 22 kW at 380/400 V, 30 kW at 415 V, 30 kW at 440 V, 30 kW at 500 V, 30 kW at 690 V, 22 kW at 400 V
AF52-30-11-13 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2277395Part Number #AF52-30-11-13UNSPSC39121529UPC03471523132436
