Part Number # AF580-30-22-70
SKU # 2443438
Image Disclaimers Message
AF580-30-22-70

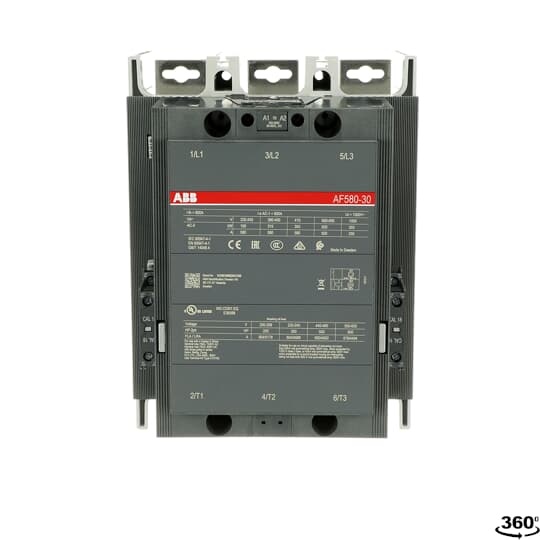

ABB AF580-30-22-70
Part Number # AF580-30-22-70
SKU # 2443438
$4877.76 / Each
Typical price:$9057.92 / Each
ABB AF580-30-22-70 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF580-30-22-70 |
| SKU #: | 2443438 |
| Coil Power Rating: | 315 kW, 500 hp, 600 hp |
| Coil Voltage: | 100 to 250 V AC/DC, 100 to 250 VAC/VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 283 mm H x 210 mm W x 242 mm D |
| Enclosure Type: | IP00/IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3000000 cycles |
| Operating Temperature: | -40 to 70 deg C |
| Terminal Type: | Screw |
| Type: | 3-Phase AC/DC Operated |
| Connection type: | Flat |
| Country of origin: | SE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 07320500222034 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4877.76 / Each
Typical price:$9057.92 / Each
Quantity:
- ABB IEC Contactor, 3-Phase AC/DC Operated, 100 to 250 V AC/DC Coil, 604 A Maximum Load Current, 315 kW, 500 hp, 600 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 2NO-2NC Auxiliary Contacts, Flat Connection, Screw Terminal, IP00/IP20 Enclosure, 3000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 283 mm H x 210 mm W x 242 mm D Dimensions
AF580-30-22-70 Application
For controlling 3-phase motors and power circuits up to 690 VAC or 600 VDC, motor starting, isolation, by-pass and distribution application up to maximum 1000 VAF580-30-22-70 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltages sags
- Built-in surge suppression
- 315 kW at 3-phase 400 V IEC, 500 hp at 440 to 480 VAC, 600 hp at 550 to 600 VAC
- 604 A at 220 to 240 VAC 3-phase UL/CSA
AF580-30-22-70 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2443438Part Number #AF580-30-22-70UNSPSC39121529UPC07320500222034
