Part Number # AF63-30-11-70
SKU # 2245468
Image Disclaimers Message
Brand: ABB
AF63-30-11-70

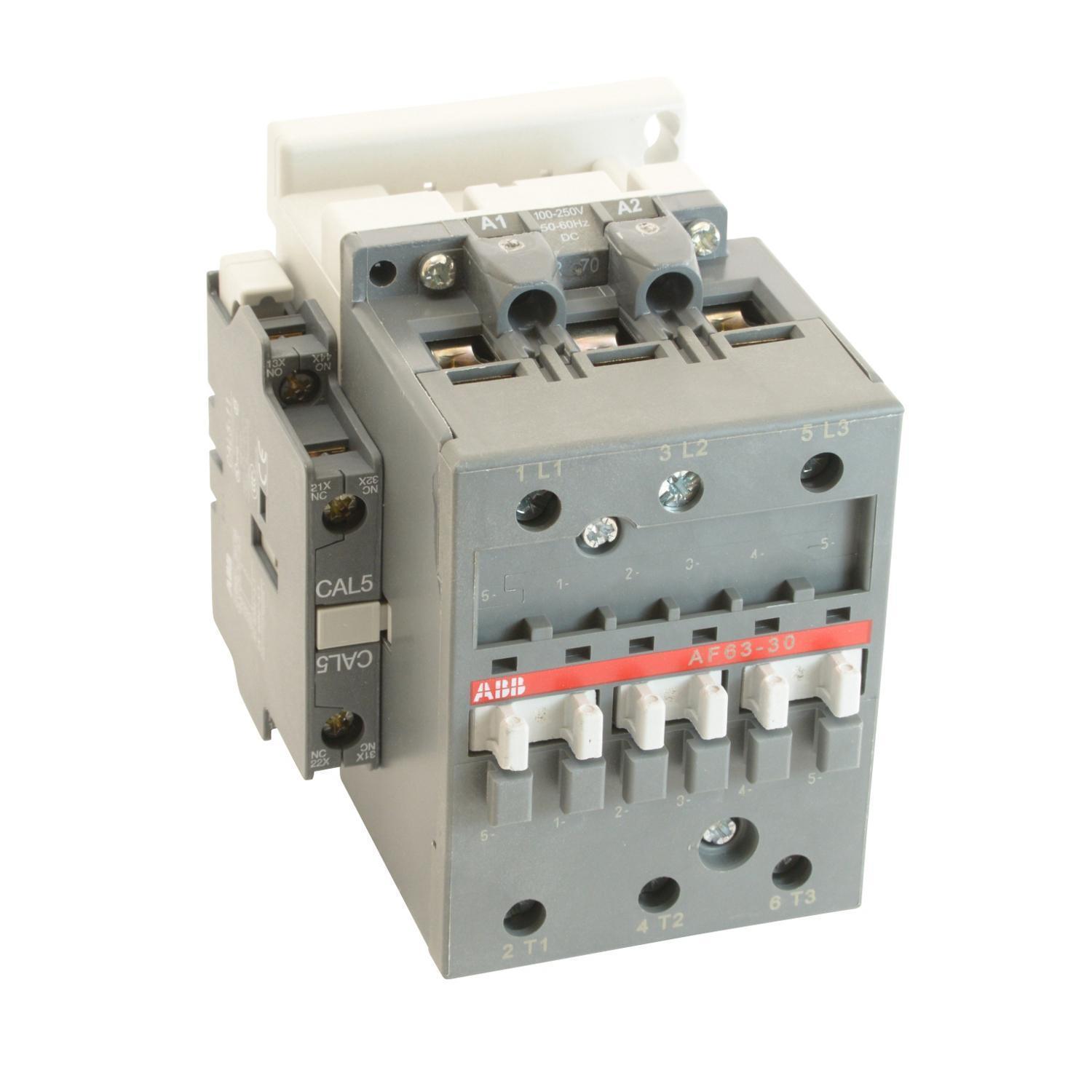

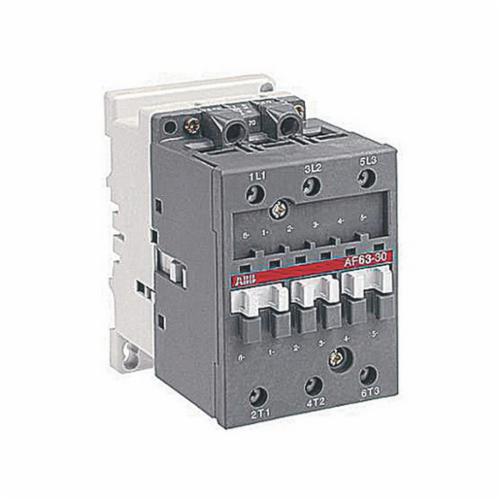

ABB AF63-30-11-70 Contactor
Part Number # AF63-30-11-70
SKU # 2245468
$825.40 / Each
Typical price:$1162.79 / Each
ABB AF63-30-11-70 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF63-30-11-70 |
| SKU #: | 2245468 |
| Coil Power Rating: | 7/210, 7/210 VA |
| Coil Voltage: | 100 V AC, 250 V DC, 100 VAC, 250 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 690, 690 V AC, 690 VAC |
| Dimensions: | 110 mm H x 82 mm W x 108 mm D |
| Enclosure Type: | NEMA 4/8 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Temperature: | -25 to 55, -25 to 55 deg C |
| Series: | AF63 |
| Terminal Type: | Screw |
| Wattage: | 37, 37 kW |
| Country of origin: | FR |
| Mounting type: | DIN Rail/Snap-On, Snap-On/DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471522115003 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$825.40 / Each
Typical price:$1162.79 / Each
Quantity:
- ABB Contactor, Series: AF63, 100 V AC, 250 V DC Coil, 90 A Maximum Load Current, 7/210 VA Coil, 3 Pole, 50/60 Hz Frequency, 37 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 690 VAC Contact, Screw Terminal, NEMA 4/8 Enclosure, -25 to 55 deg C Operating, Snap-On/DIN Rail Mounting, 110 mm H x 82 mm W x 108 mm D Dimensions
AF63-30-11-70 Specifications
- Non-reversing across the line contactor
- Operates over an extended voltage range of 85 to 110 % of rated control voltage
- 210 VA Pull-In, 7 VA holding coil power rating
- Compact, Space-saving design
- Reliable in all networks
- Coil terminal access in the front
- Easy-to-use accessories
- Built-in surge suppression
- Contactors ensure positive safety between their auxiliary contact blocks
- Easy maintenance of main contacts and coil inspection
- Can be mounted in any position
AF63-30-11-70 Application
For controlling single and three phase motors and switching power circuitsAF63-30-11-70 Item Features
- Non-reversing across the line contactor
- Compact, Space-saving design
- Reliable in all networks
- Coil terminal access in the front
- Easy-to-use accessories
- Built-in surge suppression
- Contactors ensure positive safety between their auxiliary contact blocks
- Easy maintenance of main contacts and coil inspection
- Can be mounted in any position
- Operates over an extended voltage range of 85 to 110 % of rated control voltage
- 210 VA Pull-In, 7 VA holding coil power rating
AF63-30-11-70 Standards
RoHS Compliant|EAC CertifiedSKU #2245468Part Number #AF63-30-11-70UNSPSC39121529UPC03471522115003
