Part Number # AF65-30-11-12
SKU # 2291345
Image Disclaimers Message
Brand: ABB
AF65-30-11-12

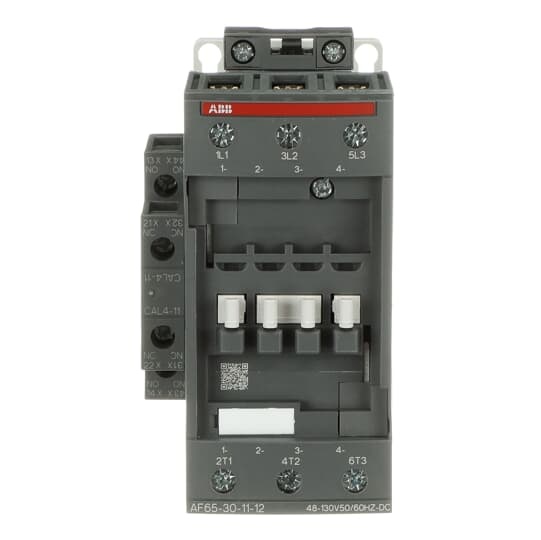

ABB AF65-30-11-12 Line Contactor
Part Number # AF65-30-11-12
SKU # 2291345
$266.76 / Each
Typical price:$495.37 / Each
ABB AF65-30-11-12 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF65-30-11-12 |
| SKU #: | 2291345 |
| Coil Power Rating: | 25 hp, 50 hp, 60 hp, 5 hp, 20 hp, 15 hp |
| Coil Voltage: | 48 to 130, 48 to 130 VAC/VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 105 A at 690 V |
| Dimensions: | 67 mm W x 111 mm D x 125.5 mm H |
| Enclosure Type: | IP10/IP20 |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -40 to 70, -40 to 70 deg C |
| Series: | AF Series |
| Size: | AF65 |
| Terminal Type: | Screw |
| Type: | Non-Reversing |
| Wattage: | 18.5/30/37, 18.5/30/37 kW |
| Country of origin: | FR |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523132726 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$266.76 / Each
Typical price:$495.37 / Each
Quantity:
- ABB Line Contactor, Non-Reversing, Series: AF Series, 48 to 130 VAC/VDC Coil, 90 A Maximum Load Current, 25 hp, 50 hp, 60 hp, 5 hp, 20 hp, 15 hp Coil, 3 Pole, 18.5/30/37 kW Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 105 A at 690 V Contact, AF65 Size, Screw Terminal, IP10/IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 67 mm W x 111 mm D x 125.5 mm H Dimensions
AF65-30-11-12 Application
For controlling 3 ph motors, non-inductive or slightly inductive loadsAF65-30-11-12 Item Features
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
- 105 A at 690 V, 90 A at 690 V, 80 A at 690 V rated operational current AC-1
- 65 A at 220/230/240 V, 65 A at 380/400 V, 65 A at 415 V, 65 A at 440 V, 55 A at 500 V, 39 A at 690 V rated operational current AC-3
- 25 hp at 220 to 240 VAC 3 ph, 50 hp at 440 to 480 VAC 3 ph, 60 hp at 550 to 600 VAC 3 ph, 5 hp at 120 VAC 1 ph, 20 hp at 200 to 208 VAC 3 ph, 15 hp at 240 VAC 1 ph
- 18.5 kW at 220/230/240 V, 30 kW at 380/400 V, 37 kW at 415 V, 37 kW at 440 V, 37 kW at 500 V, 37 kW at 690 V, 30 kW at 400 V
AF65-30-11-12 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2291345Part Number #AF65-30-11-12UNSPSC39121529UPC03471523132726
