Part Number # AF750-30-11-70
SKU # 969612
Image Disclaimers Message
Brand: ABB
AF750-30-11-70

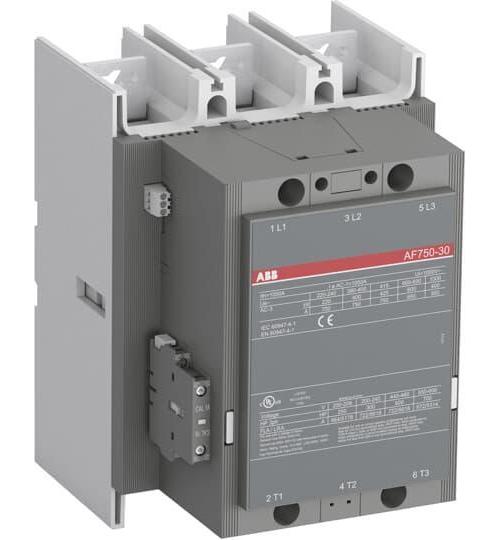

ABB AF750-30-11-70 Contactor
Part Number # AF750-30-11-70
SKU # 969612
$6757.06 / Each
Typical price:$12547.75 / Each
ABB AF750-30-11-70 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF750-30-11-70 |
| SKU #: | 969612 |
| Coil Power Rating: | 5/12/880, 5/12/880 VA |
| Coil Voltage: | 100 VAC, 250 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 1000, 1000 VAC |
| Dimensions: | 283 mm H x 210 mm W x 242 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Temperature: | -40 to 70, -40 to 70 deg C |
| Series: | AF750 |
| Terminal Type: | Screw |
| Wattage: | 400, 400 kW |
| Country of origin: | SE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 07320500217702 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6757.06 / Each
Typical price:$12547.75 / Each
Quantity:
- ABB Contactor, Series: AF750, 100 VAC, 250 VDC Coil, 900 A Maximum Load Current, 5/12/880 VA Coil, 3 Pole, 50/60 Hz Frequency, 400 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 1000 VAC Contact, Screw Terminal, IP20 Enclosure, -40 to 70 deg C Operating, DIN Rail Mounting, 283 mm H x 210 mm W x 242 mm D Dimensions
AF750-30-11-70 Application
Motor Starting, Isolation, By-Pass and Distribution Applications Up to 1000 VACAF750-30-11-70 Item Features
- Non-reversing across the line contactor
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltages sags (SEMI F47 conditions of use on request)
- Built-in surge suppression
- AC or DC operated with electronic coil interface accepting a wide control voltage range, only 4 coils to cover control voltages between 48 to 500 VAC, 50/60 Hz and 24 to 500 VDC
- 880 VA pull-in, 12/5 VA holding coil power rating
AF750-30-11-70 Standards
RoHs, CSA, cUL, CE, GOSTSKU #969612Part Number #AF750-30-11-70UNSPSC39121529UPC07320500217702
